CoaxialOptical fiber tube

Coaxial Optical Fiber FFRC/FFTC Series
Coaxial optical fiber tube

Model List Dimension chart

　Application / feature

Specifications

FF-300

FF-12(FF-301 or FF-12 fiber amplifier detection distance) can be customized fiber line for 1 M , 2 M, 3 M to 50 M and various special optical fiber.

Reflective type
*shape (mm)2** （Click for big picture）	Detec dis. (mm)	Detec object	Fiber materials	Bending radius	Appearance	3D file	Model (Click for dimension)
	55 35	Φ0.05	Φ0.51+0.254	R25	M3(Thread)		FFRC4-310
	45 35	Φ0.03	Φ0.51+0.254	R25	Φ3		FFRC4-310-Q FFRC-D32
	55 35	Φ0.03	Φ0.51+0.259	R25	M3(Thread)		FFRC-310/35FA
	55 35	Φ0.05	Φ0.51+0.259	R25	Φ3		FFRC-310-Q
	55 35	Φ0.03	Φ0.51+0.259	R25	M4(Thread)		FFRC-410
	120 90	Φ0.05	Φ1.01+0.2516	R25	M5(Thread)		FFRC-510-15Q FFRC-510-15QA FFRC-510-15B
	120 90	Φ0.05	Φ1.01+0.259	R25	Φ5		FFRC-510-Q
	120 90	Φ0.05	Φ1.01+0.259	R25	M5(Thread)		FFRC-510-SQB
	120 90	Φ0.05	Φ1.01+0.2516	R25	M6(Thread)		FFRC-610
	90 70	Φ0.05	Φ1.01+0.2516	R25	M6(Thread)		FFRC-610-MU
	55 35	Φ0.03	Φ0.25*18	R25	M4(Thread)		FFRCC-410
	120 90	Φ0.05	Φ0.25*32	R25	M6(Thread)		FFRCC-610
	120 90	Φ0.05	Φ1.01+0.2516	R25	L形		FFRC-L20
To shoot
*shape (mm)2** （Click for big picture）	Detec dis (mm)	Detec object	Fiber materials	Bending radius	Appearance	3D file	Model (Click for dimension)
	120 100	Φ0.05	Φ 0.2542	R25	Φ2		FFTC4-210
	150 130	Φ0.05	Φ0.2542	R25	M3(Thread)		FFTC4-310
	150 130	Φ0.05	Φ0.2542	R25	Φ3		FFTC4-310-Q
	150 100	Φ0.05	Φ0.2542	R25	Φ3		FFTC4-321A-15
	120 100	Φ0.05	Φ0.2542	R25	Φ1.5		FFTC4-1510

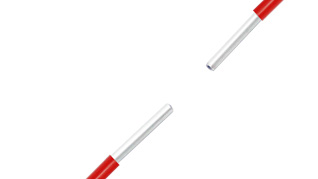

	120 100	Φ0.05	Φ0.2592	R25	Φ2		FFTC9-210
	170 150	Φ0.05	Φ0.2592	R25	M3(Thread)		FFTC9-310
	170 150	Φ0.5	Φ0.2592	R25	Φ3		FFTC9-310-Q
	400 300	Φ0.5	Φ0.25162	R25	M3(Thread)		FFTC16-310

Back》
