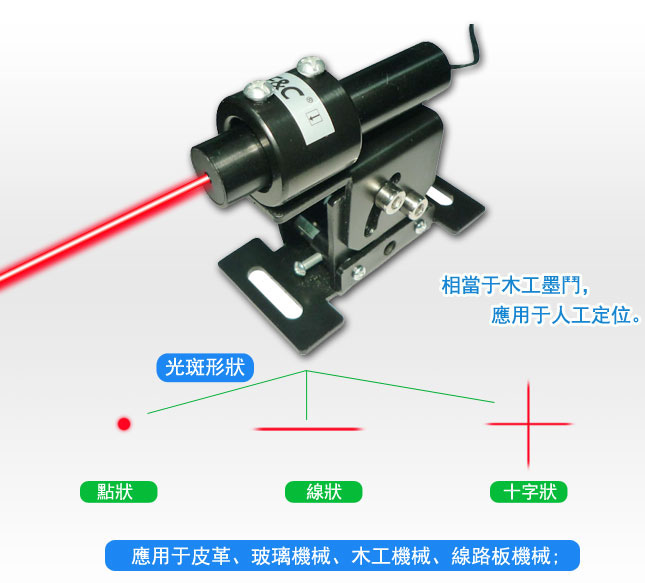

| Shapi/外观 |
Point-shaped/点式 |
Straight-shaped/一字 |
Cross-shaped/十字 |
 |
|
|
| Output Motnod/输出模式 |
3V red light |
FLA650-1/5V |
FLA650-2/5V |
FLA650-3/5V |
| 5V green light |
FLA650-1G/5V～12V |
FLA650-2G/5V～12V |
FLA650-3G/5V～12V |
| Output wavelengh/输出波长 |
650mm |
650mm |
650mm |
| Overall dimension/外型尺寸 |
16×75mm |
16×75mm |
16×75mm |
| Operating voltage/工作电压 |
DC3Vor5V |
DC3Vor5V |
DC3Vor5V |
| Operating current/工作电流 |
≤50mA |
≤50mA |
≤50mA |
| Exit pupil aperture/出瞳孔径 |
φ9mm |
φ6.8mm |
φ9mm |
| Exit pupil power/出瞳功率 |
1mw |
2.5mw |
1mw |
| Bending/弯曲度 |
≤0.05 |
≤1 |
≤1 |
| Dotting width/工作距离 |
0.1~10M |
0.1~10M |
0.1~10M |
| Operatingdistance/点线宽度 |
0.8mm(0.5m)
≤1.5mm(3m)
≤3mm(6m) |
0.5mm(0.5m)
≤1.5mm(3m)
≤2mm(6m) |
0.5mm(0.5m)
≤1.5mm(3m)
≤3mm(6m) |
| Optical system/光学系统 |
光学镀膜玻璃透镜
Optic coated glass lens |
光学镀膜玻璃透镜
Optic coated glass lens |
光学镀膜玻璃透镜
Optic coated glass lens |
| Operating temperature/工作温度 |
-10°C~+40°C |
-10°C~+40°C |
-10°C~+40°C |
| Storage temperature/储存温度 |
-40°C~+80°C |
-40°C~+80°C |
-40°C~+80°C |
| Service life/使用寿命 |
≥ 6000H |
≥ 6000H |
≥ 6000H |
| AC supply/交流电源 |
AC220V~DC3Vor5V0.5V |
AC220V~DC3Vor5V0.5V |
AC220V~DC3Vor5V0.5V |
| Conducting Wire Extraction/导线引出 |
标准插口 Standard socket |
| 3D文档 |
  |
Adjustable angle bracket /可调度支架（可订做任何支架）
 |
 |
|
|
