小方形接近开关 近接开关-F3N系列
全新防断线红尾套，标配柔软线，全保护设计 |
| |
| Feature/特点 |

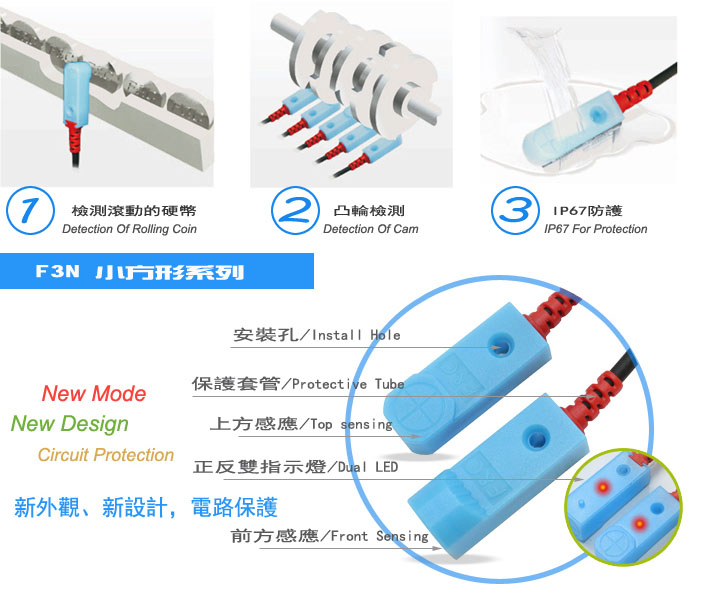

小方型接近开关-F3N系列：
低价格，适用于狭小空间安装，安装方便。
型号多样各有上方检测、前方检测、两线制、不同频率等。
低结构能防水、防油、防尘等特殊应用。
可订制5VDC。
Procurement/订购指南
Category
类别 |
Model
型号 |
Detection mode
检出方式 |
Detection distance
检测距离 |
Detected objects
检测最小物体 |
Entry cable
出线方式 |
 |
F3N-06TN01-N R2M |
NPN.NO |
▆ 1mm |
6×6×1(iron) |
φ3×2M/3-wires(3线制)或引线150mm M8连接器 |
| F3N-06TN01-P R2M |
PNP.NO |
|
F3N-06DN01-N R2M |
NPN.NO |
| F3N-06DN01-P R2M |
PNP.NO |
 |
F3N-08TN02-N R2M |
NPN.NO |
▆ ▆ 2mm |
8×8×1(iron) |
φ3×2M/3-wires(3线制)或引线150mm M8连接器 |
| F3N-08TN02-N2 R2M |
NPN.NC |
| F3N-08TN02-P R2M |
PNP.NO |
| F3N-08TN02-P2 R2M |
PNP.NC |
| F3N-08TN02-B R2M |
两线.NO |
| F3N-08TN02-B2 R2M |
两线.NC |
 |
F3N-08DN02-N R2M |
NPN.NO |
| F3N-08DN02-N2 R2M |
NPN.NC |
| F3N-08DN02-P R2M |
PNP.NO |
| F3N-08DN02-P2 R2M |
PNP.NC |
| F3N-08DN02-B R2M |
两线.NO |
| F3N-08DN02-B2 R2M |
两线.NC |
 |
F3N-11TN04-N R2M |
NPN.NO |
▆ ▆ ▆ 4mm |
10×10×1(iron) |
φ3×2M/3-wires(3线制)或引线150mm M8连接器 |
| F3N-11TN04-N2 R2M |
NPN.NC |
| F3N-11TN04-P R2M |
PNP.NO |
| F3N-11TN04-P2 R2M |
PNP.NC |
| F3N-11TN04-B R2M |
两线.NO |
| F3N-11TN04-B2 R2M |
两线.NC |
|
F3N-11DN04-N R2M |
NPN.NO |
| F3N-11DN04-N2 R2M |
NPN.NC |
| F3N-11DN04-P R2M |
PNP.NO |
| F3N-11DN04-P2 R2M |
PNP.NC |
| F3N-11DN04-B R2M |
两线.NO |
| F3N-11DN04-B2 R2M |
两线.NC |
| |
F3N-15TN05-N R2M |
NPN.NO |
▆ ▆ ▆ ▆ 5mm |
15×15×1(iron) |
φ3×2M/3-wires(3线制)或引线150mm M8连接器 |
| F3N-15TN05-N2 R2M |
NPN.NC |
| F3N-15TN05-P R2M |
PNP.NO |
| F3N-15TN05-P2 R2M |
PNP.NC |
| F3N-15TN05-B R2M |
2线.NO |
| F3N-15TN05-B2 R2M |
2线.NC |
 |
F3N-15DN05-N R2M |
NPN.NO |
| F3N-15DN05-N2 R2M |
NPN.NC |
| F3N-15DN05-P R2M |
PNP.NO |
| F3N-15DN05-P2 R2M |
PNP.NC |
| F3N-15DN05-B R2M |
2线.NO |
| F3N-15DN05-B2 R2M |
2线.NC |
|
注："-N”表示NPN；"-P"表示PNP；“-B”表示２线制；"P2/N2"表示pnp常闭或npn常闭；"/15D表示出线150mm连接器式；
Specifications/规格表
| Model/型号 |
F3N-06 series |
F3N-08 series |
F3N-11 series |
F3N-15 series |
Scanning distance/检出距离 |
1mm |
2mm |
4mm |
5mm |
Recommened distance/建议距离 |
0.8mm |
1.6mm |
3.2mm |
4mm |
Standard sensing object/标准检测物 |
6×6×1(iron) |
8×8×1(iron) |
10×10×1(iron) |
15×15×1(iron) |
Response friquency/反应频率 |
DC:600Hz/可定制不同频率 |
Hysteresis/反差距离 |
1O%≤sensing distance |
Operating voltage/ 工作电压 |
DC:10～30VDC±10%/可定制5V |
Current consumption/ 消耗电流 |
DC:≤8mA No—Load |
Load current/ 负载电流 |
DC:30V 200mA Max |
Leakage current/ 漏电电流 |
DC:≤1.1mA no-Load |
Residual votage/ 残余电压 |
DC:≤1.0VDC No-load |
Operating temperature/ 工作温度范围 |
-20°C～+70°C |
Material/外观材质 |
ABS |
Wiring method/出线方式 |
φ3×2M/3-wires/(3线制)/φ3×2M/2-wires/(2线制)/φ4×2M/3-wires/(3线制)/φ4×2M/2-wires/(2线制) |
Protection degree/ 防水等级 |
IP67 |

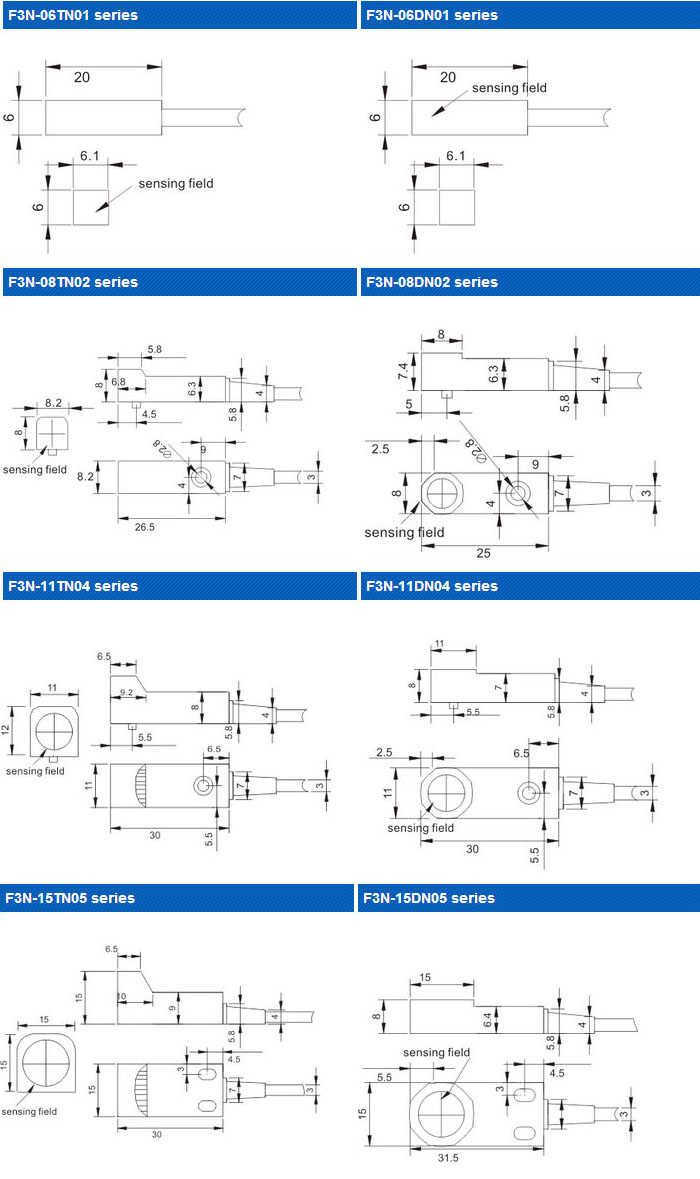

DiMensions/外型尺寸图（单位：mm）

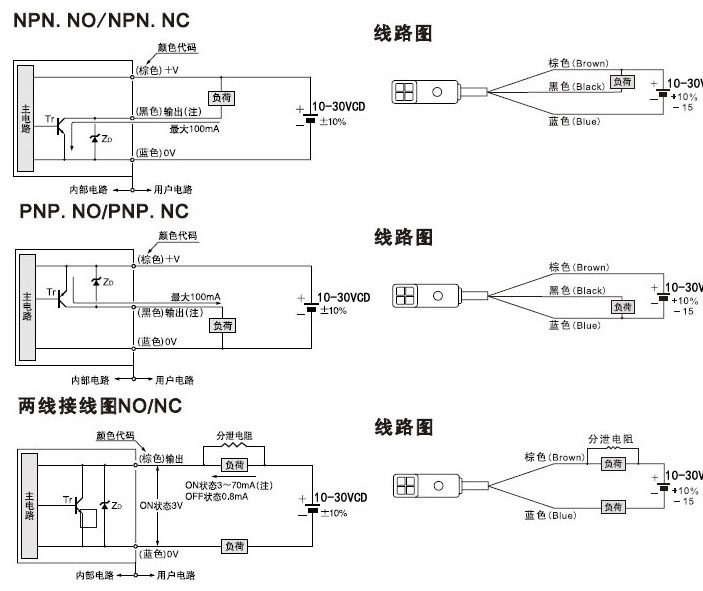

Wiring schemes/接线图
