| Emitting light/发光源 |
RedLED(红光LED)：630nm |
| Operating voltage/ 工作电压 |
DC:10～30VDC±10%(Ripple P-P:10%Max) |
| Current consumption/ 消耗电流 |
15mA Max |
| Load current/ 负载电流 |
100mA Max at DC 24V |
| Output type/输出模式 |

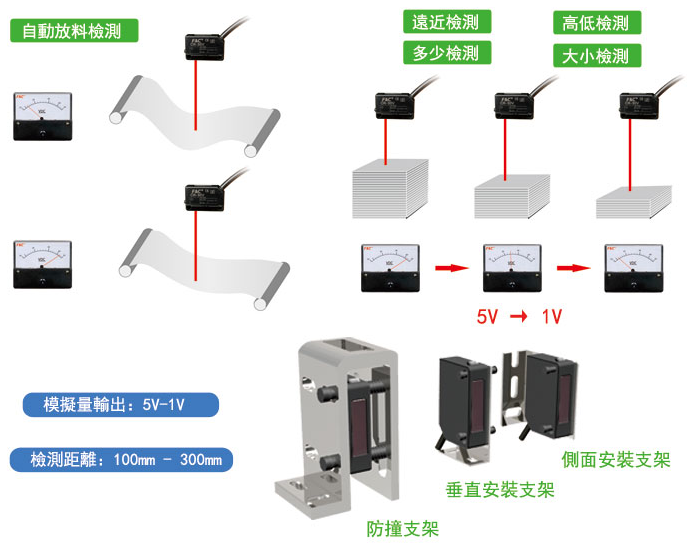

模拟量输出：5v-1v |
| Protection circuit/保护电路 |
Reversed supply ciruit protection,short citcuit protection output
电源反接保护及输出短路保护 |
| Response time/ 反应时间 |
0.3 ms Max |
| Insulation resistance/隔离阻抗 |
20M Ωmin.(DC500V) |
| Voltage withstandatility/绝缘耐压 |
AC1000V 60Hz for 60 Sec |
| Operating temperature/ 工作温度范围 |
-10°C～+45°C(No freezing allowed 不可结霜，结冰) |
| Ambient hunidity/工作时温度 |
35%~85%RH相对温度 |
| Storage temperarure/储存时温度 |
-10°C～+55°C(No freezing allowed 不可结霜，结冰) |
| Storage hunidity/储存时温度 |
35%~95%RH相对温度 |
| Material/外观材质 |
ABS |
| Wiring method/出线方式 |
φ4×2M/3-wires(3线制)/φ4×2M/2-wires(2线制) |
| Protection degree/ 防水等级 |
IP64 可定做IP67 |
| Weight/重量 |
Approx.20g |
