2. K-PW4M/xxKGLEO1-1 Part Number Description:
| Part Number |
Description |
Detailed description |
| |
|
|
| K-PW4M/500GLEO1-1 |
PW4MC3/500g-400R1G-LEO |
PW4M,C3, Modco, Creep -40+/-166ppm, 400mm 4W cable, w/o plug, ground |
| K-PW4M/2KGLEO1-1 |
PW4MC3/2kg-400R1G-LEO |
PW4M,C3, Modco, Creep -40+/-166ppm, 400mm 4W cable, w/o plug, ground |
| K-PW4M/3KGLEO1-1 |
PW4MC3/3kg-400R1G-LEO |
PW4M,C3, Modco, Creep -40+/-166ppm, 400mm 4W cable, w/o plug, ground |

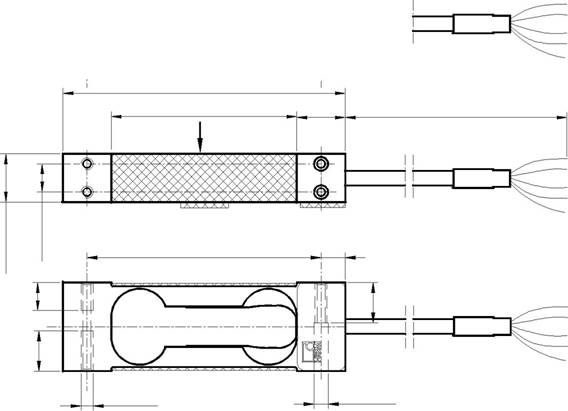

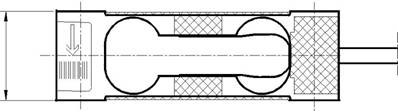

3. K-PW4M/xxKGLEO1-1 Mounting dimension:

| |
容2 |
|
|
|
|
|
| |
22±0 |
|
|
|
|
E+(BLU)S+(WHT) |
| |
|
|
|
|
E-(BLK)S-(RED) |
| |
12345678 |
|
|
|
S/N |
| |
|
|
|
|
| |
|
|
|
|
|
| |
|
70±0容2 |
|
|
|
|
| |
|
46 |
|
12 |
400+20/0 |
| |
|
A |
|
|
|
|
| |
|
|
|
|
|
E+(BLU)S+(WHT) |
| W±0容2 |
|
A |
|
|
|
|
| |
58±0容1 |
|
|
6 |
|
| |
7±0容1 |
|
|
|
|
| |
|
7 |
PW4M C3 |
300g-LEO |
limit=150% |
10 |
| |
|
10 |
|
|
Safe load |
|
| |
|
6-M3 |
|
|
|
φ3容5 |
| |
|
|
|
|
|
| |
PW4M/500g |
PW4M/2-3kg |
| |
|
|
| W |
12 |
15 |
| |
|
|
 Cable:
Shielded 4-core round cable(AWG26) with PVC-jacket
Wiring code:
| Pin1 : |
Excitation voltage + : |
blue |
| Pin2 : |
Signal+: |
white |
| Pin3 : Signal - : |
red |
| Pin4 : |
Excitation voltage - : |
black |
| |
Shield: |
Yellow, connected to LC body |
Mounting:
Socket head cap screw M3-8.8
Tightening torque:1.3N·m

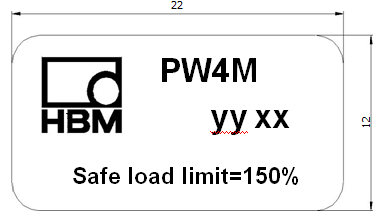

4.1 Type label
Part Number |
yy |
xx |
|
|
|
K-PW4M/500GLEO1-1 |
C3 |
500g-LEO |
K-PW4M/2KGLEO1-1 |
C3 |
2kg-LEO |
K-PW4M/3KGLEO1-1 |
C3 |
3kg-LEO |

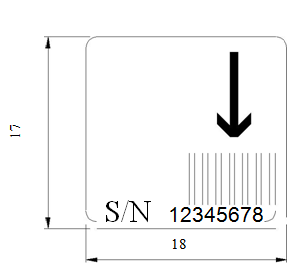

4.2 S/N Label
 |
