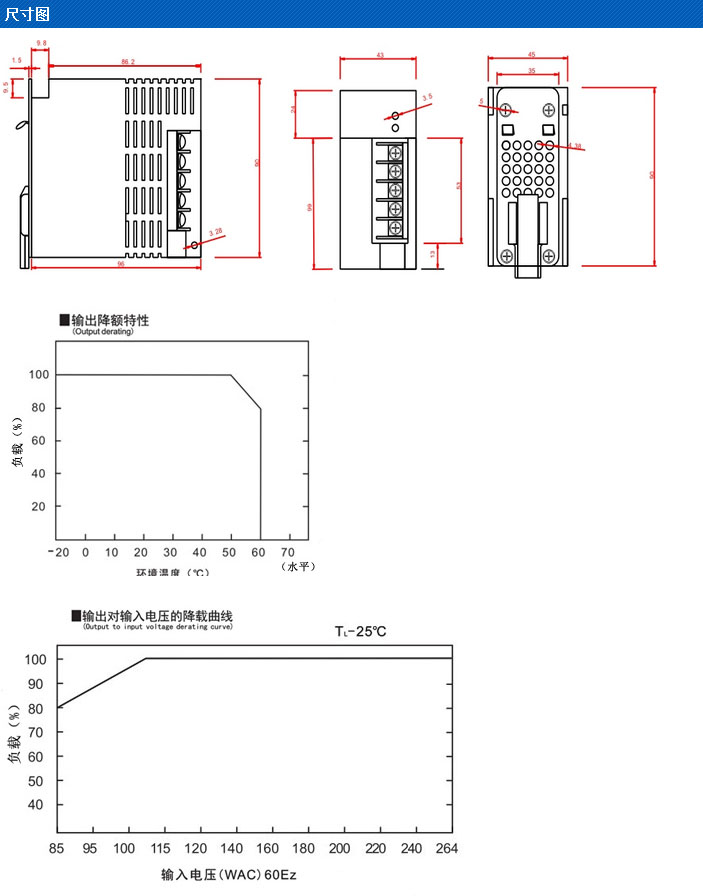

100W Rail power supply

100W Switch Power Supply

　Feature

Screw/Rail amphibious installation.
Natural cooling.
100% Heavy Load test.
Output voltage can be modified : 3V~200VDC
Convenient installation.
Voltage digital display

Model	FP100D-24M	FP100D-24MDA（digital）	FP100D-12M	FP100D-12MDA（digital）
DC voltage	24V		12V
Rated voltage	4.2A		8.3A
Current range	0~4.2A		0~8.3A
Rated power	100W		100W
Ripple and Noise	240mVp-p		240mVp-p
Voltage adjustment range	28~34V		12×10%
Linear adjust rate	±1%		±1%
Load adjust rate	±1%		±2%
Output voltage adjusted ±%	V1:+24V ±10%		V1:+24V ±10%
Efficiency	±80% min
Vibration test	2G ,10~500Hz , 3axes
Input range	90~132/180~264VAC
Output	200~380VDC
Keep time	13ms
Input frequency	47~440Hz
Impulse current（25 ℃）	20A/110VAC
Working temperature	-15~+50℃
Work humidity	5~+95%RH
Storage temperature	-20~+85℃

Keep time is in the 110 VAC input and rated load test.

※ Load current: each group output can provide the maximum load , but the total load not more than rating.
※ Line adjust rate: In rated load, from low voltage to high voltage detection.
※ Load adjustment rate: in 110 VAC input ,from 20% to 100% of the rated load test.
※ Ripple and noise: in 110 VAC input and rated load use a 0.1 UF / 630 V metal capacitance and a 47 UF electrolytic parallel to do the test.
※ Efficiency: In the 110 VAC input and rated load test.
