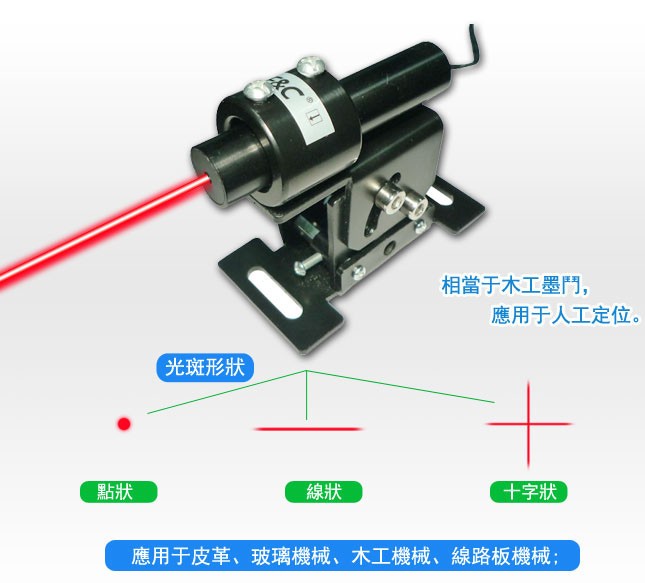

laser alignment device FLA series:
Used in leather, glass, machinery, woodworking machinery, circuit board machinery, quality and stability.
Custom models of all sizes, various functions of the laser, can be customized 24V power supply.
standard power supply 220v (operating in 5v)

Shapi		Point-shaped	Straight-shaped	Cross-shaped
Shapi
Output Motnod	3V red light	FLA650-1/5V	FLA650-2/5V	FLA650-3/5V
Output Motnod	5V green light	FLA650-1G/5V～12V	FLA650-2G/5V～12V	FLA650-3G/5V～12V
Output wavelengh		650mm	650mm	650mm
Overall dimension		16×75mm	16×75mm	16×75mm
Operating voltage		DC3Vor5V	DC3Vor5V	DC3Vor5V
Operating current		≤50mA	≤50mA	≤50mA
Exit pupil aperture		φ9mm	φ6.8mm	φ9mm
Exit pupil power		1mw	2.5mw	1mw
Bending		≤0.05	≤1	≤1
Dotting width		0.1~10M	0.1~10M	0.1~10M
Operatingdistance		0.8mm(0.5m) ≤1.5mm(3m) ≤3mm(6m)	0.5mm(0.5m) ≤1.5mm(3m) ≤2mm(6m)	0.5mm(0.5m) ≤1.5mm(3m) ≤3mm(6m)
Optical system		Optic coated glass lens	Optic coated glass lens	Optic coated glass lens
Operating temperature		-10°C~+40°C	-10°C~+40°C	-10°C~+40°C
Storage temperature		-40°C~+80°C	-40°C~+80°C	-40°C~+80°C
Service life		≥ 6000H	≥ 6000H	≥ 6000H
AC supply		AC220V~DC3Vor5V0.5V	AC220V~DC3Vor5V0.5V	AC220V~DC3Vor5V0.5V
Conducting Wire Extraction		Standard socket
3Dfile
Adjustable angle bracket

Magnetic switch>>
Magnetic switch Dimension chart>>
