Rectangle proximity sensors F3N Series
Anti-bent Red tube,soft cable,circuit protection |
| |
| Feature |

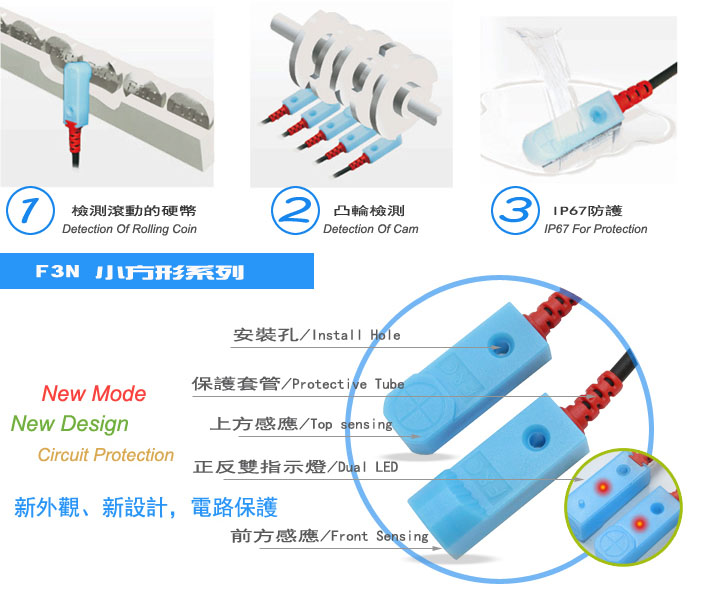

small rectangle F3N series：
Low price, suitable for narrow spance install, easy installing;
Many models, top sense, front sense, two sub-wire, three sub-wire, differnet frequency for choice;
IP67, water-proof, oil-proof, dust-proo;
Can do 5VDC;
Procurement
| Category |
Model |
Detection mode |
Detection distance |
Detected objects |
Entry cable |
 |
F3N-06TN01-N R2M |
NPN.NO |
▆ 1mm |
6×6×1(iron) |
φ3×2M/3-wires(3sub wires)Or lead150mm M8 connector |
| F3N-06TN01-P R2M |
PNP.NO |
|
F3N-06DN01-N R2M |
NPN.NO |
| F3N-06DN01-P R2M |
PNP.NO |
 |
F3N-08TN02-N R2M |
NPN.NO |
▆ ▆ 2mm |
8×8×1(iron) |
φ3×2M/3-wires(3sub wires)Or lead150mm M8 connector |
| F3N-08TN02-N2 R2M |
NPN.NC |
| F3N-08TN02-P R2M |
PNP.NO |
| F3N-08TN02-P2 R2M |
PNP.NC |
| F3N-08TN02-B R2M |
Two line.NO |
| F3N-08TN02-B2 R2M |
Two line.NC |
 |
F3N-08DN02-N R2M |
NPN.NO |
| F3N-08DN02-N2 R2M |
NPN.NC |
| F3N-08DN02-P R2M |
PNP.NO |
| F3N-08DN02-P2 R2M |
PNP.NC |
| F3N-08DN02-B R2M |
Two line.NO |
| F3N-08DN02-B2 R2M |
Two line.NC |
 |
F3N-11TN04-N R2M |
NPN.NO |
▆ ▆ ▆ 4mm |
10×10×1(iron) |
φ3×2M/3-wires(3sub wires)Or lead150mm M8 connector |
| F3N-11TN04-N2 R2M |
NPN.NC |
| F3N-11TN04-P R2M |
PNP.NO |
| F3N-11TN04-P2 R2M |
PNP.NC |
| F3N-11TN04-B R2M |
Two line.NO |
| F3N-11TN04-B2 R2M |
Two line.NC |
|
F3N-11DN04-N R2M |
NPN.NO |
| F3N-11DN04-N2 R2M |
NPN.NC |
| F3N-11DN04-P R2M |
PNP.NO |
| F3N-11DN04-P2 R2M |
PNP.NC |
| F3N-11DN04-B R2M |
Two line.NO |
| F3N-11DN04-B2 R2M |
Two line.NC |
| |
F3N-15TN05-N R2M |
NPN.NO |
▆ ▆ ▆ ▆ 5mm |
15×15×1(iron) |
φ3×2M/3-wires(3sub wires)Or lead150mm M8 connector |
| F3N-15TN05-N2 R2M |
NPN.NC |
| F3N-15TN05-P R2M |
PNP.NO |
| F3N-15TN05-P2 R2M |
PNP.NC |
| F3N-15TN05-B R2M |
2Line.NO |
| F3N-15TN05-B2 R2M |
2Line.NC |
 |
F3N-15DN05-N R2M |
NPN.NO |
| F3N-15DN05-N2 R2M |
NPN.NC |
| F3N-15DN05-P R2M |
PNP.NO |
| F3N-15DN05-P2 R2M |
PNP.NC |
| F3N-15DN05-B R2M |
2Line.NO |
| F3N-15DN05-B2 R2M |
2Line.NC |
|
Specifications
| Models |
F3N-06 series |
F3N-08 series |
F3N-11 series |
F3N-15 series |
Scanning distance |
1mm |
2mm |
4mm |
5mm |
Recommened distance |
0.8mm |
1.6mm |
3.2mm |
4mm |
Standard sensing object |
6×6×1(iron) |
8×8×1(iron) |
10×10×1(iron) |
15×15×1(iron) |
Response frequency |
DC:600Hz/ can be customized different frequency |
Hysteresis |
1O%≤sensing distance |
Operating voltage |
DC:10～30VDC±10%/ can do 5 VDC |
Currents consumption |
DC:≤8mA No—Load |
Load currents |
DC:30V 200mA Max |
Leakage currents |
DC:≤1.1mA no-Load |
Residual votage |
DC:≤1.0VDC No-load |
Operating temperature |
-20°C～+70°C |
Material |
ABS |
Wiring method |
φ3×2M/3-wires / φ3×2M/2-wires / φ4×2M/3-wires / φ4×2M/2-wires |
Protection degree |
IP67 |
DiMensions

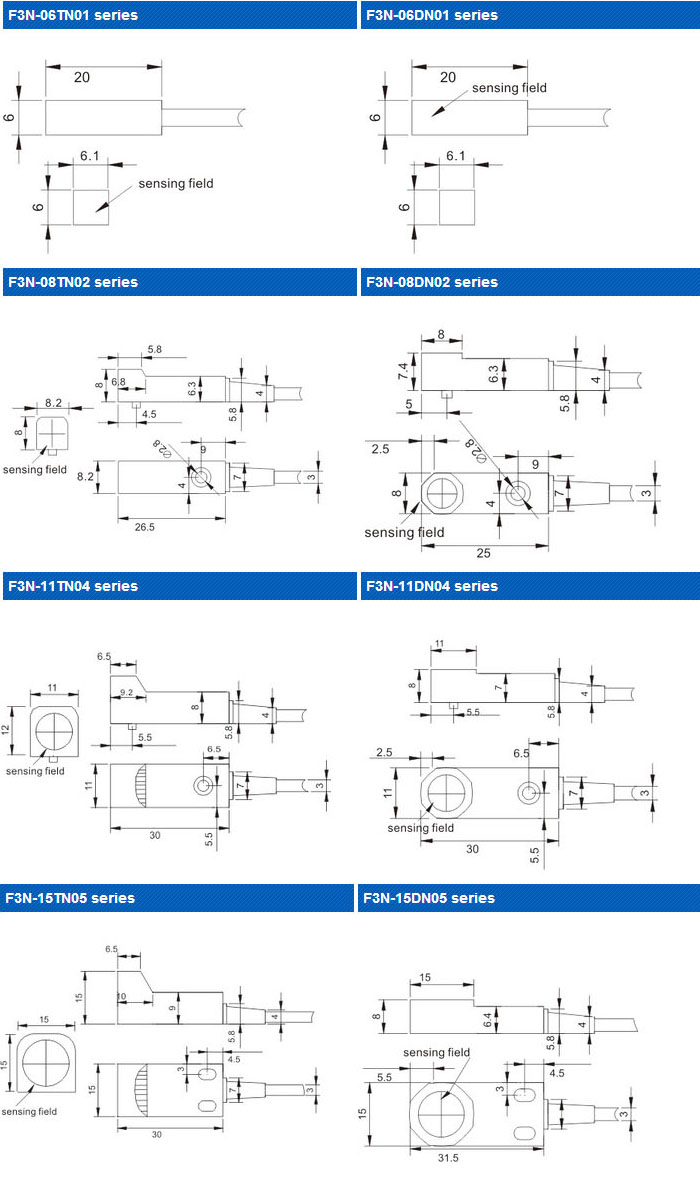

Dimension chart（mm）

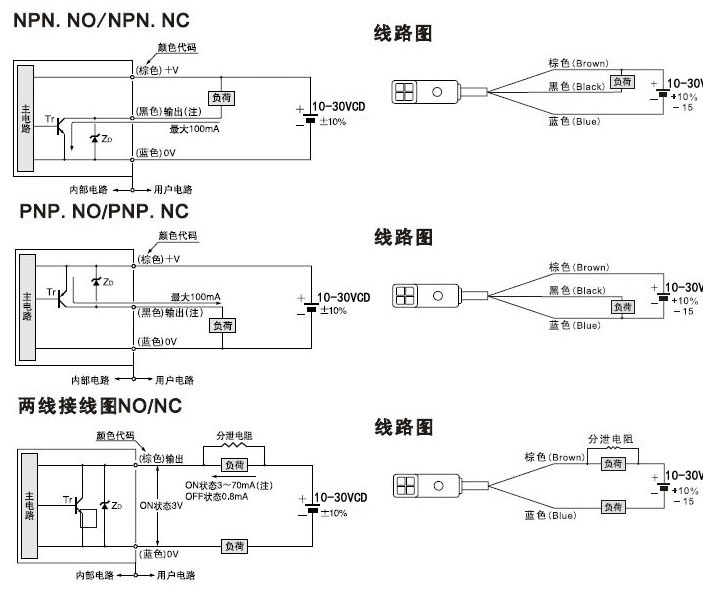

Wiring schemes
