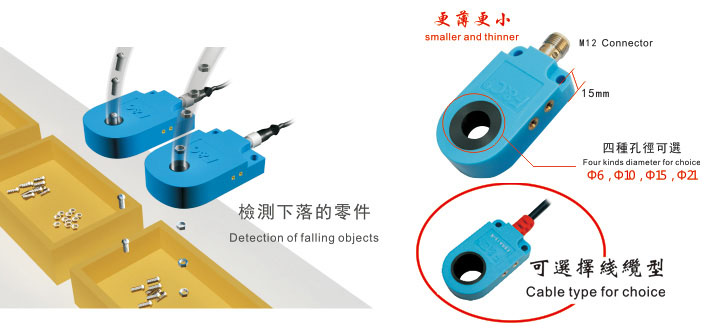

Ring proximity sensors FSNA series
thin and light, cable type and connector type |
| |
| Feature |
Optional φ 6, 10 φ, φ 15, 21mm hole size;
FSNA06 series 1mm is the minimum size of objects for detections;
Standard test material: iron or steel and M12 connector wiring, performance stability;
Detected the nut, screw, nail, washer, rivet, shaft, ball bearing, springs and other parts.
Procurement
| Category |
Model |
Detection mode |
Detection distance |
Detected objects |
Entry cable |
3D files |
 |
FSNA06-ND |
NPN.NO |
▆ 6mm |
φ3*2 cone |
M12 connector
2Mcable/4 Core |
|
| FSNA06-PD |
PNP.NO |
 |
FSNA10-ND |
NPN.NO |
▆▆ 10mm |
φ4*3 cone |
M12 connector
2Mcable/4 Core |
|
| FSNA10-PD |
PNP.NO |
 |
FSNA15-ND |
NPN.NO |
▆▆ 15mm |
φ5*4 cone |
M12 connector
2Mcable/4 Core |
|
| FSNA15-PD |
PNP.NO |
 |
FSNA21-ND |
NPN.NO |
▆▆▆ 21mm |
φ6*12 cone |
M12 connector
2Mcable/4 Core |
|
| FSNA21-ND |
PNP.NO |
|
Note: "D" is expressed as direct connectors type; "N " mean NPN output;"P " mean PNP output;
Specifications
Specifications |
Ring FSN Series Proximity Sensors |
| Model |
FSNA06 |
FSNA10 |
FSNA15 |
FSNA21 |
Scanning distance |
6mm |
10mm |
15mm |
21mm |
Recommened distance |
6mm |
10mm |
15mm |
21mm |
Standard sensing object |
φ3*2 cone
|
φ4*3 cone |
φ5*4 cone |
φ6*12 cone |
Response friquency |
1KHZ |
Hysteresis |
2%≤sensing distance |
Operating voltage |
DC:10～30VDC±10% |
Current consumption |
DC:≤15mA No—Load |
Load currents |
DC:30V 200mA Max |
Leakage currents |
DC:≤10uA no-Load |
Residual votage |
DC:≤1.5V at 200mA |
Operating temperature |
-20°C～+70°C |
Material |
PVC |
Wiring method |
M12 connectors / 4pins |
Protection degree |
IP67 |
DiMensions

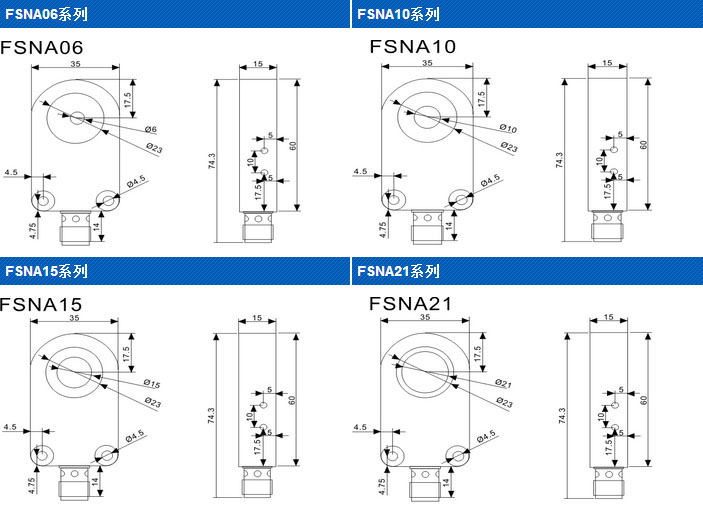

Dimension chart（mm）

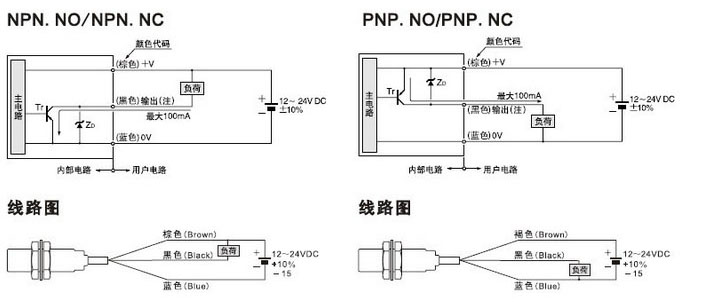

Wiring schemes
