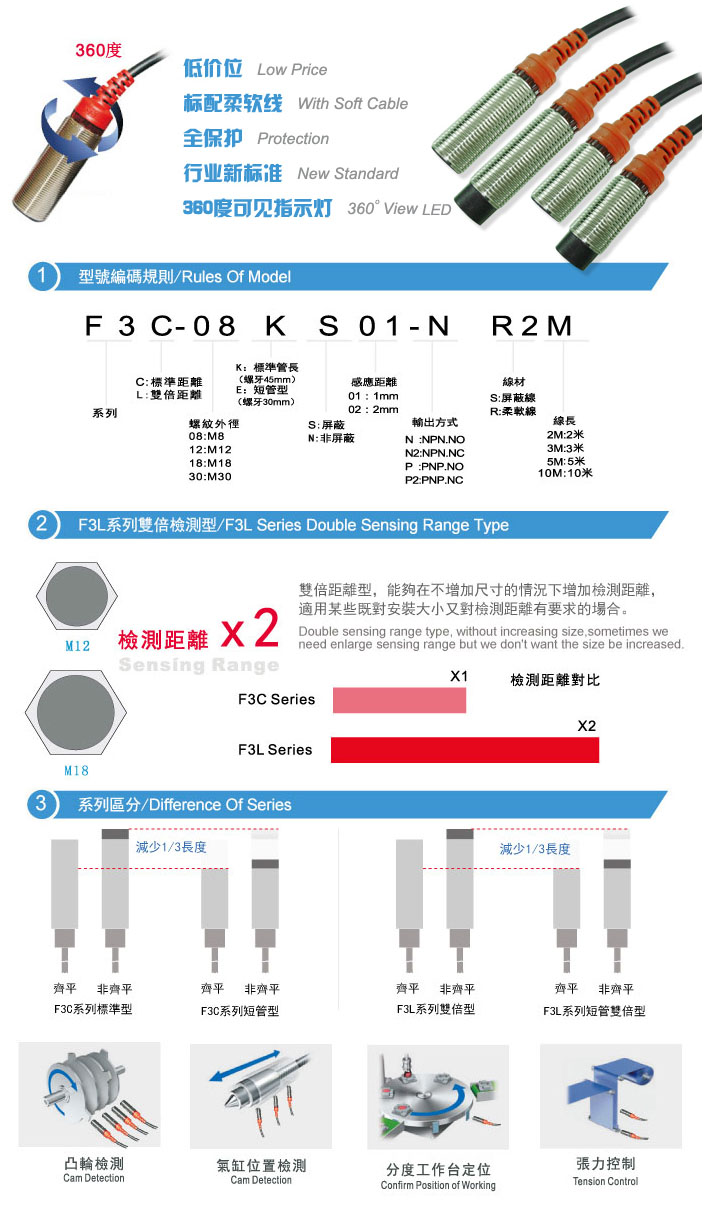

富达科技-Optical fiber tube New Cylinder Proximity Sensors F3C/F3L series
360 Degrees View LED,red tube for protection

　Feature
Cylinder Proximity Sensors-F3C/L M8/M12/M18/M30：
New circuit design, 360 degrees view LED；
Red tube for protection, PUR soft cable；
Standard length housing and short housing, standard sensing range and double sensing range for choice；
F3C series as a normal series, F3L as a double sensing range series.

Procurement
Category
 Model(Click for dimension Dimension chart) Det- mode Detect-distance Deteted objects Entry cable
M8Series
 M8Standard type, Qi Ping F3C-08KS01-N R2M NPN.NO ▆ 1mm 8×8×1(iron) φ3×2M/3-wires(3sub wires)
M8 F3C-08KS01Series  F3C-08KS01-N2 R2M NPN.NC
F3C-08KS01-P R2M PNP.NO
F3C-08KS01-P2 R2M PNP.NC
M8标准型、非齐平 F3C-08KN02-N R2M NPN.NO ▆ 2mm 8×8×1(iron) φ3×2M/3-wires(3sub wires)
M8 F3C-08KN02Series
F3C-08KN02-N2 R2M NPN.NC
F3C-08KN02-P R2M PNP.NO
F3C-08KN02-P2 R2M PNP.NC
M8Short型、齐平 F3C-08ES01-N R2M NPN.NO ▆ 1mm 8×8×1(iron) φ3×2M/3-wires(3sub wires)
 M8 F3C-08ES01Series F3C-08ES01-N2 R2M NPN.NC
F3C-08ES01-P R2M PNP.NO
F3C-08ES01-P2 R2M PNP.NC
M8Short型、非齐平 F3C-08EN02-N R2M NPN.NO ▆ 2mm 8×8×1(iron) φ3×2M/3-wires(3sub wires)
 M8 F3C-08ES01Series F3C-08EN02-N2 R2M NPN.NC
F3C-08EN02-P R2M PNP.NO
F3C-08EN02-P2 R2M PNP.NC
M8双倍型、齐平 F3L-08KS02-N R2M NPN.NO ▆ 2mm 8×8×1(iron) φ3×2M/3-wires(3sub wires)
 M8 F3L-08KS02Series F3L-08KS02-N2 R2M NPN.NC
F3L-08KS02-P R2M PNP.NO
F3L-08KS02-P2 R2M PNP.NC
M8Double type, non flush  F3L-08KN04-N R2M NPN.NO ▆ ▆ 4mm 12×12×1(iron) φ3×2M/3-wires(3sub wires)
M8 F3L-08KN04Series
F3L-08KN04-N2 R2M NPN.NC
F3L-08KN04-P R2M PNP.NO
F3L-08KN04-P2 R2M PNP.NC
M8Double tube type, Qi Ping  F3L-08ES02-N R2M NPN.NO ▆ 2mm 8×8×1(iron) φ3×2M/3-wires(3sub wires)
 M8 F3L-08ES02Series F3L-08ES02-N2 R2M NPN.NC
F3L-08ES02-P R2M PNP.NO
F3L-08ES02-P2 R2M PNP.NC
M8Double tube type, non flush   F3L-08EN04-N R2M NPN.NO ▆ ▆ 4mm 12×12×1(iron) φ3×2M/3-wires(3sub wires)
 M8 F3L-08EN04Series F3L-08EN04-N2 R2M NPN.NC
F3L-08EN04-P R2M PNP.NO
F3L-08EN04-P2 R2M PNP.NC
M12Series
M12Standard type, Qi Ping F3C-12KS02-N R2M NPN.NO ▆ 2mm 12×12×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-12KS02Series F3C-12KS02-N2 R2M NPN.NC
F3C-12KS02-P R2M PNP.NO
F3C-12KS02-P2 R2M PNP.NC
M12标准型、非齐平 F3C-12KN04-N R2M NPN.NO ▆ ▆ 4mm 12×12×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-12KS04Series F3C-12KN04-N2 R2M NPN.NC
F3C-12KN04-P R2M PNP.NO
F3C-12KN04-P2 R2M PNP.NC
M12Short型、齐平 F3C-12ES02-N R2M NPN.NO ▆ 2mm 12×12×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-12ES02Series F3C-12ES02-N2 R2M NPN.NC
F3C-12ES02-P R2M PNP.NO
F3C-12ES02-P2 R2M PNP.NC
M12Short型、非齐平 F3C-12EN04-N R2M NPN.NO ▆ ▆ 4mm 12×12×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-12EN04Series F3C-12EN04-N2 R2M NPN.NC
F3C-12EN04-P R2M PNP.NO
F3C-12EN04-P2 R2M PNP.NC
M12双倍型、齐平 F3L-12KS04-N R2M NPN.NO ▆ ▆ 4mm 12×12×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3L-12KS04Series F3L-12KS04-N2 R2M NPN.NC
F3L-12KS04-P R2M PNP.NO
F3L-12KS04-P2 R2M PNP.NC
M12Double type, non flush F3L-12KN08-N R2M NPN.NO ▆ ▆▆ 8mm 24×24×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3L-12KN08Series F3L-12KN08-N2 R2M NPN.NC
F3L-12KN08-P R2M PNP.NO
F3L-12KN08-P2 R2M PNP.NC
M12Double tube type, Qi Ping F3L-12ES04-N R2M NPN.NO ▆ ▆ 4mm 12×12×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3L-12ES04Series F3L-12ES04-N2 R2M NPN.NC
F3L-12ES04-P R2M PNP.NO
F3L-12ES04-P2 R2M PNP.NC
M12Double tube type, non flush F3L-12EN08-N R2M NPN.NO ▆ ▆▆ 8mm 24×24×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3L-12EN08Series F3L-12EN08-N2 R2M NPN.NC
F3L-12EN08-P R2M PNP.NO
F3L-12EN08-P2 R2M PNP.NC
M18Series
M18Standard type, Qi Ping F3C-18KS05-N R2M NPN.NO ▆ ▆ 5mm 18×18×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-18KS05Series F3C-18KS05-N2 R2M NPN.NC
F3C-18KS05-P R2M PNP.NO
F3C-18KS05-P2 R2M PNP.NC
M18标准型、非齐平 F3C-18KN08-N R2M NPN.NO ▆ ▆ ▆ 8mm 24×24×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-18KN08Series F3C-18KN08-N2 R2M NPN.NC
F3C-18KN08-P R2M PNP.NO
F3C-18KN08-P2 R2M PNP.NC
M18Short型、齐平 F3C-18ES05-N R2M NPN.NO ▆ ▆ 5mm 18×18×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-18ES05Series F3C-18ES05-N2 R2M NPN.NC
F3C-18ES05-P R2M PNP.NO
F3C-18ES05-P2 R2M PNP.NC
M18Short型、非齐平 F3C-18EN08-N R2M NPN.NO ▆ ▆ ▆ 8mm 24×24×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-18EN08Series F3C-18EN08-N2 R2M NPN.NC
F3C-18EN08-P R2M PNP.NO
F3C-18EN08-P2 R2M PNP.NC
M18双倍型、齐平 F3L-18KS08-N R2M NPN.NO ▆ ▆ ▆ 8mm 24×24×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3L-18KS08Series F3L-18KS08-N2 R2M NPN.NC
F3L-18KS08-P R2M PNP.NO
F3L-18KS08-P2 R2M PNP.NC
M18Double type, non flush F3L-18KN16-N R2M NPN.NO ▆ ▆ ▆ 16mm 48×48×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-18KN08Series F3L-18KN16-N2 R2M NPN.NC
F3L-18KN16-P R2M PNP.NO
F3L-18KN16-P2 R2M PNP.NC
M18Double tube type, Qi Ping F3L-18ES08-N R2M NPN.NO ▆ ▆ ▆ 8mm 24×24×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3L-18ES08Series F3L-18ES08-N2 R2M NPN.NC
F3L-18ES08-P R2M PNP.NO
F3L-18ES08-P2 R2M PNP.NC
M18ShortDouble type, non flush F3L-18EN16-N R2M NPN.NO ▆ ▆ ▆ 16mm 48×48×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3L-18EN16Series F3L-18EN16-N2 R2M NPN.NC
F3L-18EN16-P R2M PNP.NO
F3L-18EN16-P2 R2M PNP.NC
M30Series
M30Standard type, Qi Ping F3C-30KS10-N R2M NPN.NO ▆ ▆ ▆ 10mm 30×30×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-30KS10Series F3C-30KS10-N2 R2M NPN.NC
F3C-30KS10-P R2M PNP.NO
F3C-30KS10-P2 R2M PNP.NC
M30标准型、非齐平 F3C-30KN15-N R2M NPN.NO ▆ ▆ ▆ 15mm 45×45×1(iron) φ4.0×2M/3-wires(3sub wires)
F3C-30KN10Series
F3C-30KN15-N2 R2M NPN.NC
F3C-30KN15-P R2M PNP.NO
F3C-30KN15-P2 R2M PNP.NC
M30Short型、齐平 F3C-30ES10-N R2M NPN.NO ▆ ▆ ▆ 10mm 30×30×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-30ES10Series F3C-30ES10-N2 R2M NPN.NC
F3C-30ES10-P R2M PNP.NO
F3C-30ES10-P2 R2M PNP.NC
M30Short型、非齐平 F3C-30EN15-N R2M NPN.NO ▆ ▆ ▆ 15mm 45×45×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-30EN15Series F3C-30EN15-N2 R2M NPN.NC
F3C-30EN15-P R2M PNP.NO
F3C-30EN15-P2 R2M PNP.NC
M30双倍型、齐平 F3L-30KS15-N R2M NPN.NO ▆ ▆ ▆ 15mm 45×45×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3L-30KS15Series F3L-30KS15-N2 R2M NPN.NC
F3L-30KS15-P R2M PNP.NO
F3L-30KS15-P2 R2M PNP.NC
M30Double type, non flush F3L-30KN20-N R2M NPN.NO ▆ ▆ ▆ ▆ 20mm 60×60×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3L-30KN20Series F3L-30KN20-N2 R2M NPN.NC
F3L-30KN20-P R2M PNP.NO
F3L-30KN20-P2 R2M PNP.NC
M30Double tube type, Qi Ping F3L-30ES15-N R2M NPN.NO ▆ ▆ ▆ 15mm 45×45×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-30ES15Series F3L-30ES15-N2 R2M NPN.NC
F3L-30ES15-P R2M PNP.NO
F3L-30ES15-P2 R2M PNP.NC
M30ShortDouble type, non flush F3L-30EN20-N R2M NPN.NO ▆ ▆ ▆ ▆ 20mm 60×60×1(iron) φ4.0×2M/3-wires(3sub wires)
 F3C-30EN20Series F3L-30EN20-N2 R2M NPN.NC
F3L-30EN20-P R2M PNP.NO
F3L-30EN20-P2 R2M PNP.NC
*Can customized connector interface, "Standard" mean "standard length housing", "Short" mean "short housing", "Double" mean "double sensing range", "S&D" mean "short housing and double sensing range"；

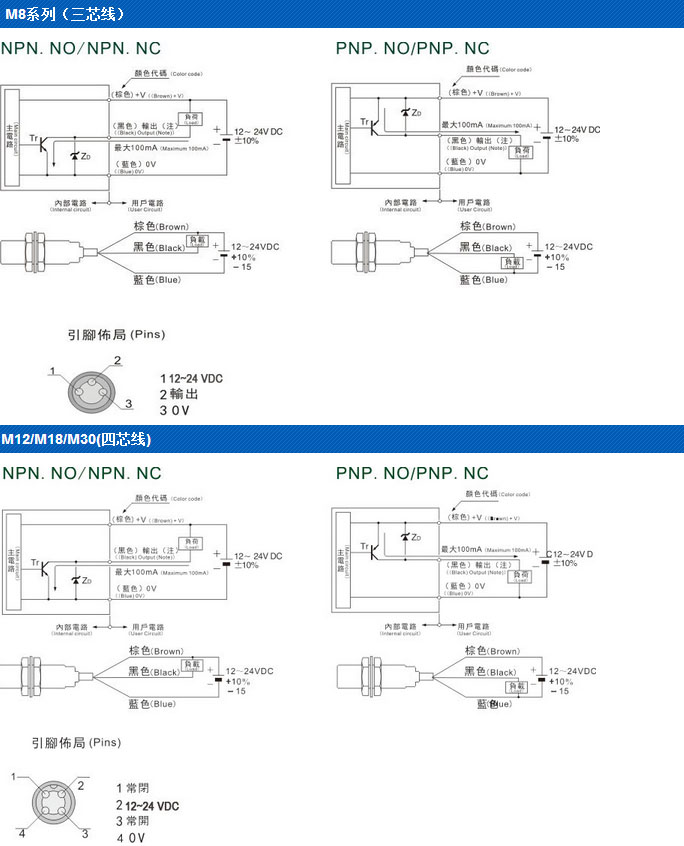

*Note："-N” mean NPN；"-P" mean PNP；“-B” mean 2 wires；"P2/N2" mean pnp.nc or npn.nc；"D" mean connector type interface；
Specifications
Response frequency 1000Hz/800Hz
Hysteresis 10%≤sensing distance
Operating voltage DC:10～30VDC±10%/ can be customized 5V
Current consumption DC:≤8mA No—Load
Load currents DC:30V 200mA Max
Leakage currents DC:≤0.01mA no-Load
Residual votage DC:≤1.5VDC No-load
Operating temperature -20°C～+70°C
Material PBTand SUS304
Wiring method 2M/3-wires
Protection degree IP67
DiMensions Dimension chart（mm）
