DR12 SERIES

DR12 SERIES photoelectric switch
IP66, M12,anti-sunlight

　Feature

Round photoelectric sensors DR12 SERIES
Standard polarized lens reflex type;
IP66, M12, universal type;
Anti-sunlight from outside, can use in outdoor.

Procurement

Category	Model	Detection mode	Detection distance	Detectable objects	Entry cble	3D file
	DR12-500N DR12-500N/15D	NPN.NO	▆ ▆ ▆ ▆ 5m	φ5non-transparent	φ4×2M/3-wires(3 sub-wires) or with 150mm cable connector type
	DR12-500N2 DR12-500N2/15D	NPN.NC
	DR12-500P DR12-500P/15D	PNP.NO
	DR12-500P2 DR12-500P2/15D	PNP.NC
	DR12-15N DR12-15N/15D	NPN.NO	▆ ▆ ▆ 15cm	φ5non-transparent	φ4×2M/3-wires (3 sub-wires) or with 150mm cable connector type
	DR12-15N2 DR12-15N2/15D	NPN.NC
	DR12-15P DR12-15P/15D	PNP.NO
	DR12-15P2 DR12-15P2/15D	PNP.NC
	DR12-05N DR12-05N/15D	NPN.NO	▆ 5cm	φ5non-transparent	φ4×2M/3-wires (3 sub-wires) or with 150mm cable connector type
	DR12-05N2 DR12-05N2/15D	NPN.NC
	DR12-05P DR12-05P/15D	PNP.NO
	DR12-05P2 DR12-05P2/15D	PNP.NC

NOTE: "/15D" at the end mean with 150mm cable connector type

Specifications

Emitting light	RedLED(红光LED)：630nm
Operating voltage	DC:10～30VDC±10%(Ripple P-P:10%Max)
Current consumption	15mA Max
Load current	100mA Max at DC 24V
Output type	N=NPN.No/N2=NPN.NC P=PNP.NO/P2=PNP.NC NC=NPN.NO.NC PC=PNP.NO.NC
Protection circuit	Reversed supply ciruit protection,short citcuit protection output
Response time	0.3 ms Max
Insulation resistance	20M Ωmin.(DC500V)
Voltage withstandatility	AC1000V 60Hz for 60 Sec
Operating temperature	-10°C～+45°C(No freezing allowed )
Ambient hunidity	35%~85%RHRelative temperature
Storage temperarure	-10°C～+55°C(No freezing allowed )
Storage hunidity	35%~95%RHRelative temperature
Material	ABS
Wiring method	φ4×2M/3-wires(3sub wires)/φ4×2M/2-wires(2sub wires)/φ4×2M/4-wires(4sub wires)
Protection degree	IP67
Weight	Approx.20g

Note: can be customized chain wire.

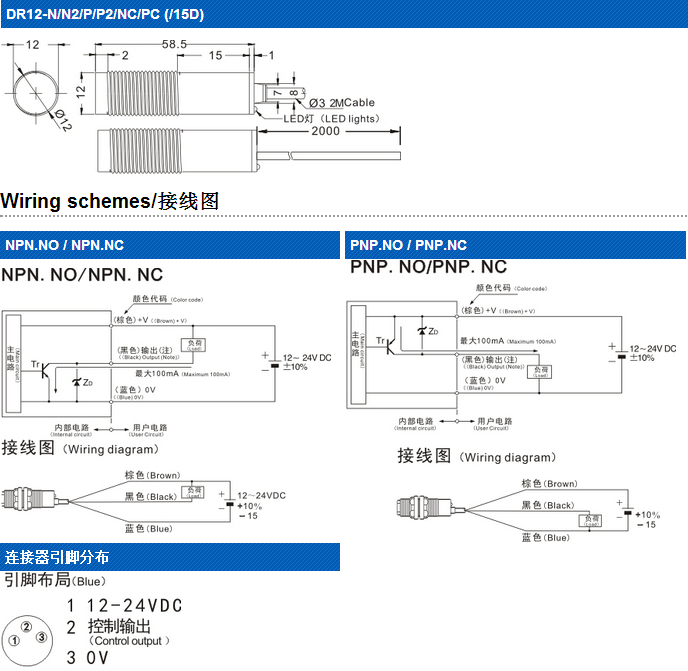

DiMensions Dimension chart（mm）
