U shape Optical Switch

U shape Optical Switch FC/FU/FQ/SU Series
Can be customized 5 VDC and connector type

　Feature

Use simple wire leads type (standard length: 2 meters);
No interference by external light;
5 mm wide slot ,six kind appearance, applicable to all kinds of installations, mark detection, liquid level detection;
Low cost;
Length of cable can be customized;
The design of our products can be waterproof, prevent oil, dustproof or other functions.

Category	Model? (click models for dimensions)	Detection mode	Width of slot	Detected objects	Entry cable	3D file
	FC-SPX302 FC-SPX302/15D	NPN.NO.NC	▆ 5mm	φ1mmnon-transparent	φ2.6×2M/4-wires(4sub wires)
	FC-SPX302P FC-SPX302P/15D	PNP.NO.NC
	FC-SPX303 FC-SPX303/15D	NPN.NO.NC
	FC-SPX303P FC-SPX303P/15D	PNP.NO.NC
	FC-SPX304 FC-SPX304/15D	NPN.NO.NC
	FC-SPX304P FC-SPX304P/15D	PNP.NO.NC
	FC-SPX305 FC-SPX305/15D	NPN.NO.NC
	FC-SPX305P FC-SPX305P/15D	PNP.NO.NC
	FC-SPX306 FC-SPX306/15D	NPN.NO.NC
	FC-SPX306P FC-SPX306P/15D	PNP.NO.NC
	FC-SPX307 FC-SPX307/15D	NPN.NO.NC
	FC-SPX307P FC-SPX307P/15D	PNP.NO.NC
	FC-SPX308 FC-SPX308/15D	NPN.NO.NC	front sensing ▆▆▆15mm		φ2.6×2M/3-wires(3sub wires)
	FC-SPX308 FC-SPX308/15D	PNP.NO.NC
	FC-SPX309 FC-SPX309/15D	NPN.NO.NC	top sensing ▆▆▆15mm
	FC-SPX309 FC-SPX309/15D	PNP.NO.NC
	FC-SPX310 FC-SPX310/15D	NPN.NO.NC	▆ ▆ ▆10mm		φ4.2×2M/4-wires(4sub wires)
	FC-SPX310P FC-SPX310P/15D	PNP.NO.NC
	FC-SPX315 FC-SPX315/15D	NPN.NO.NC	▆ ▆ ▆ ▆15mm
	FC-SPX315P FC-SPX315P/15D	PNP.NO.NC
	FU-07N FU-07N/15D	NPN.NO.NC	▆ ▆ 7mm
	FU-07P FU-07P/15D	PNP.NO.NC
	FU-07GN FU-07GN/15D	NPN.NO.NC
	FU-07GP FU-07GP/15D	PNP.NO.NC
	FU30-N FU30-N/15D	NPN.NO.NC	▆ ▆ ▆ 30mm
	FU30-P FU30-P/15D	PNP.NO.NC
	FUP30-N FUP30-N/15D	NPN.NO.NC
	FUP30-P FUP30-P/15D	PNP.NO.NC

※Can do water-proof and 5VDC working voltage type;
※"/15D" mean 150mm cable with connector;

Specifications

Emitting light	Red LED：630nm
Operating voltage	DC:10～30VDC±10%(Ripple P-P:10%Max)
Current consumption	15mA Max
Load current	100mA Max at DC 24V
Output type	N=NPN.NO P=PNP.NPN
Protection circuit	Reversed supply ciruit protection,short citcuit protection output
Response time	0.3 ms Max
Insulation resistance	20M Ωmin.(DC500V)
Voltage withstandatility	AC1000V 60Hz for 60 Sec
Operating temperature	-10°C～+45°C No freezing allowed
Ambient hunidity	35%~95%RH
Storage temperarure	-10°C～+55°C No freezing allowed
Storage hunidity	35%~95%RH
Material	ABS
Wiring method	φ2.6×2M/4-wires /φ4.2×2M/3-wires /φ4.2×2M/4-wires
Protection degree	IP66
Weight	Approx.18.5g

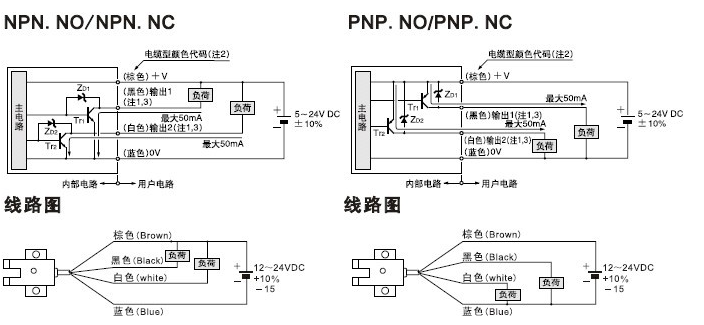

Wiring schemes
