U shape Optical Switch

Capacitive sensor FC-4100Series
Capacitive sensorFC-4100

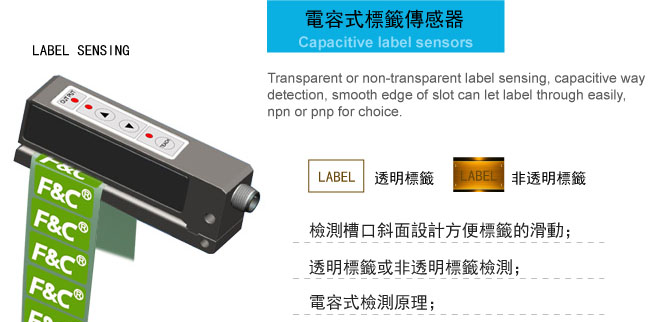

　Feature

First, capacitive label sensors that reliable detection of transparent or non-transparent label;
Second, can choose convenient NPN and PNP transistor output control;
Three, the casing outside the metal and bevel edge can drag sensed label easier..

Specifications

Model	FC-4100
Detection distance	groove width * = 0.7 * 85 mm
Operation voltage	DC 10 ~ 30 v including 10% wave values (P - P)
consumption Current	25mA max
Response time	0.1ms
Frequency	5kHz
Control OutPut	1 NPN transistor collector output, normally open; or 1 PNP transistor normally open collector output .
Sensing feature	Reversible label movement direction
Output current	100mA
Electrical reliability	Wiring protection/reverse connect protection/short circuit protection
Indicator	Red light H: balance benchmark indicator
	Red light D: sensitivity is high or low
	Green light F: signal output indicator
Sensitivity adjustment	Button to adjust
Environmental temperature	0 ℃ ~ 6 ℃
Material appearance	AL
Wiring method	M12 connector
Weight	-- -- --

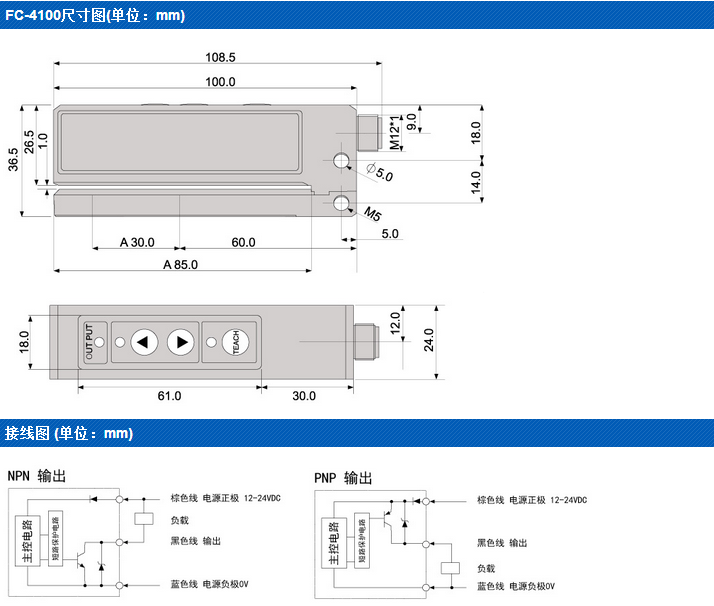

Dimension chart
