Infrared photo Sensors

Infrared photo Sensors CR Series
CR series Invisible light photo sensors

　Feature

Universal infrared sensors for logistics device;
IP66 structures;
Long-range detection distance upto 10m, diffuse upto 0.8M, mirror reflection type uptp 2m;
The global scope (EN specifications) (available in NPN, PNP applicable);
Anti light from outside, haven't any effect the working; (some items with "Z" at the end )

Procurement

Anti-sunshine
Category	Model Model	Detection mode	Detection distance Detection distance	Detected smallest objects	Entry cble
	CR-500Z CR-500Z/15D	NPN.NO.NC	▆ ▆ ▆ ▆ ▆ 5m	φ3non-transparent	φ4×2M/3(3sub wires)+φ4×2M/2(2sub wires) or connector type
	CR-500ZP CR-500ZP/15D	PNP.NO,NC
	CR-200Z CR-200Z/15D	NPN.NO.NC	▆ ▆ ▆ 2m	φ5non-transparent	φ4×2M/3-wires(3sub wires) or connector type
	CR-200ZP CR-200ZP/15D	PNP.NO.NC
	CR-40Z CR-40Z/15D	NPN.NO.NC	▆ 40cm	10mm×10mmwhite paper	φ4×2M/3-wires(3sub wires) or connector type
	CR-40ZP CR-40ZP/15D	PNP.NO.NC
Note: with "/15D" mean 150mm cable connector type, with "Z" mean anti-sunshine type, with "P" mean PNP output;
普通型
Category 类别	Model Model	Detection mode 检出方式	Detection distance Detection distance	Detect the smallest objects 检测最小物体	Entry cable 出Line方式
	CR-1000 CR-1000/15D	NPN.NO.NC	▆ ▆ ▆ ▆ ▆ ▆ ▆ 10m	φ5non-transparent	φ4×2M/3-wires(3sub wires)+φ4×2M/2-wires(2sub wires) or connector type
	CR-1000P CR-1000P/15D	PNP.NO.NC
	CR-500 CR-500/15D	NPN.NO.NC	▆ ▆ ▆ ▆ 5m	φ3non-transparent	φ4×2M/3-wires(3sub wires)+φ4×2M/2-wires(2sub wires) or connector type
	CR-500P CR-500P/15D	PNP.NO,NC
	CR-200 CR-200/15D	NPN.NO.NC	▆ ▆ ▆ 2m	φ5non-transparent	φ4×2M/3-wires(3sub wires) or connector type
	CR-200P CR-200P/15D	PNP.NO.NC
	CR-100 CR-100/15D	NPN.NO.NC	▆ ▆ 100cm	10mm×10mmwhite paper	φ4×2M/3-wires(3sub wires) or connector type
	CR-100P CR-100P/15D	PNP.NO.NC
	CR-40 CR-40/15D	NPN.NO.NC	▆ 40cm	10mm×10mmwhite paper	φ4×2M/3-wires(3sub wires) or connector type
	CR-40P CR-40P/15D	PNP.NO.NC
	CR-10 CR-10/15D	NPN.NO.NC	■10cm	10mm×10mmwhite paper	φ4×2M/3-wires(3sub wires) or connector type
	CR-10P CR-10P/15D	PNP.NO.NC
Note: with "/15D" mean 150mm cable connector type, with "Z" mean anti-sunshine type, with "P" mean PNP output;
Simple type
	CR-500 CR-500/15D	NPN.NO.NC	▆ ▆ ▆ ▆ 5m	φ3non-transparent	φ4×2M/3-wires(3sub wires)+φ4×2M/2-wires(2sub wires) or connector type this model without Potentiometer, NC or No only one state for choice
	CR-500P CR-500P/15D	PNP.NO,NC
Note: with "/15D" mean 150mm cable connector type, with "Z" mean anti-sunshine type, with "P" mean PNP output;

Specifications

Emitting light	RedLED ：630nm
Operating voltage	DC:10～30VDC±10%(Ripple P-P:10%Max)
Current consumption	15mA Max
Load current	100mA Max at DC 24V
Output type	N=NPN.NO.NC???????? ?P=PNP.NO.NC
Protection circuit	Reversed supply ciruit protection,short citcuit protection output
Response time	0.3 ms Max
Insulation resistance	20M Ωmin.(DC500V)
Voltage withstandatility	AC1000V 60Hz for 60 Sec
Operating temperature	-10°C～+45°C （No freezing allowed ）
Ambient hunidity	35%~85%RH
Storage temperarure	-10°C～+55°C （No freezing allowed ）
Storage hunidity	35%~95%RH
Material	ABS
Wiring method	φ4×2M/3-wires, φ4×2M/2-wires
Protection degree	IP64?????can customize IP67
Weight	Approx.20g

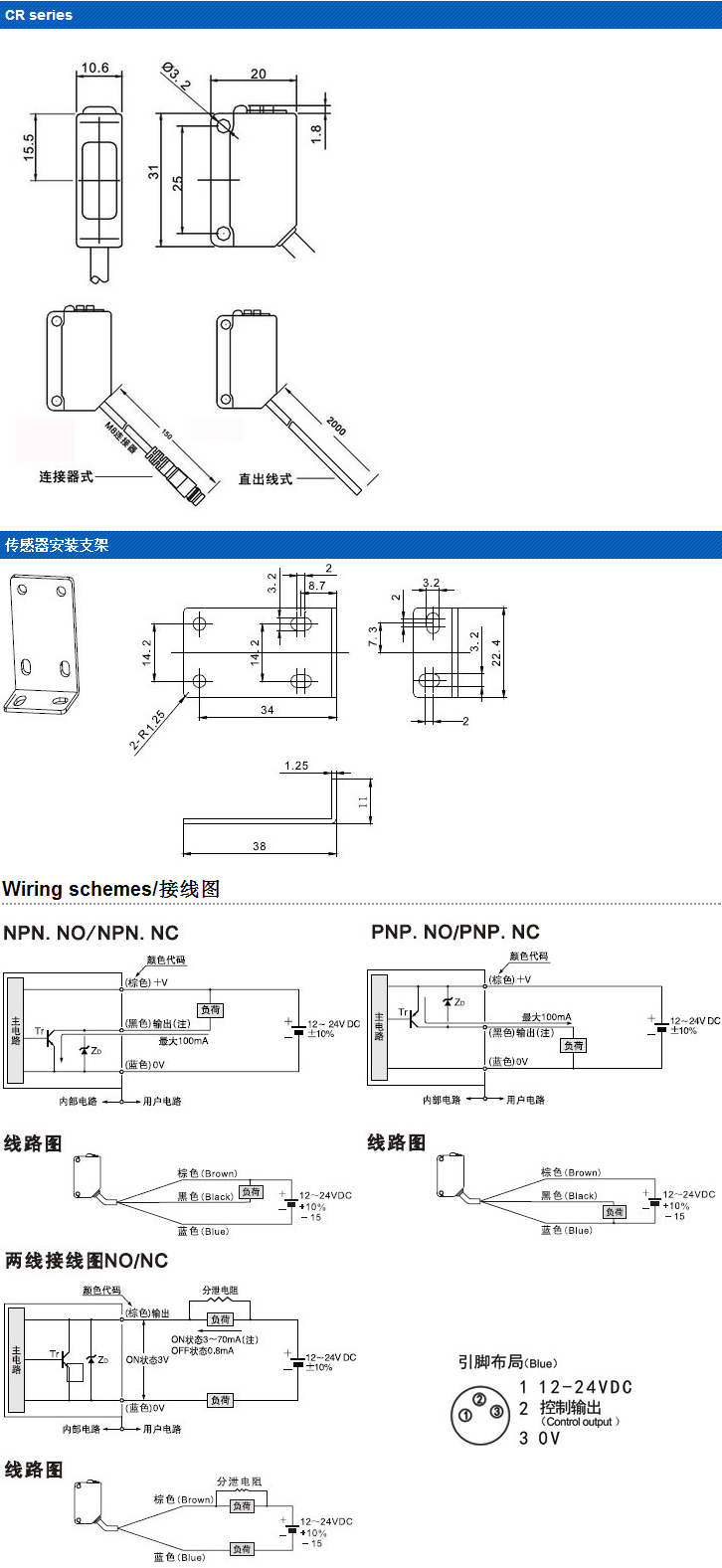

Dimension chart

Back》
