Analog quantityPhotoelectric switch

Analog quantityPhotoelectric switch CR-30VSeries
CR-30V series photo sensors switches,voltage outpu

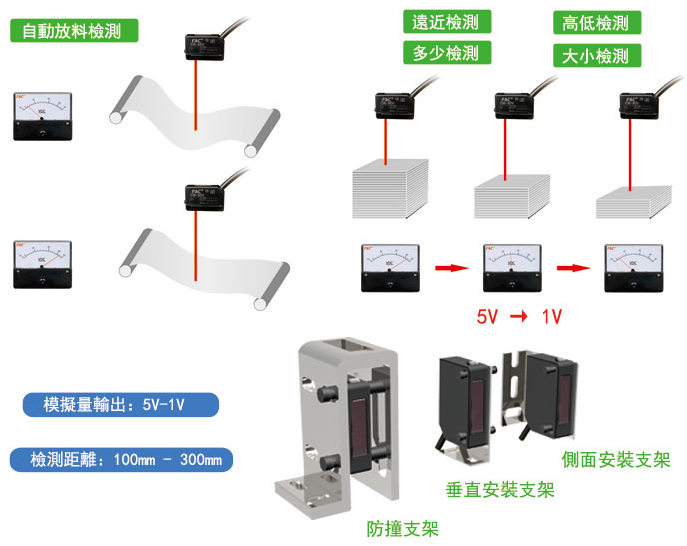

　Feature

Analog output, 1~5VDC voltage range output;
Amount detection, can recogniz small and big, object closed and far detection;
Small size, water-proof, dust-proof;
Cable type or connector type for choice;
Distance of detection is 100mm~300mm or 100mm~600mm.

Procurement

Voltage Output Type
Category	Model	Detection mode	Detection distance	Detected objects	Entry cable	3D files
	CR-30V CR-30V/15D	voltage output	▆ ▆ ▆ ▆ ▆ 100mm~300mm	10*10CM white paper	φ4×2M/3 (3sub-wires or 150mm cable with connector
	CR-60V CR-60V/15D	voltage output	▆ ▆ ▆ ▆ ▆ 100mm~600mm	10*10CM white paper	φ4×2M/3 (3sub-wires or 150mm cable with connector
	CR-30R CR-30R/15D	visible light switching output	▆ ▆ ▆ ▆ ▆ 300mm	10*10CM white paper	φ4×2M/3 (3sub-wires or 150mm cable with connector

Note: With "/15D" in model, mean 150mm cable with connnecter;
Specifications

Emitting light	RedLED：630nm
Operating voltage	DC:10～30VDC±10%(Ripple P-P:10%Max)
Current consumption	15mA Max
Load current	100mA Max at DC 24V
Output type	output voltage：5v-1v
Protection circuit	Reversed supply ciruit protection,short citcuit protection output
Response time	0.3 ms Max
Insulation resistance	20M Ωmin.(DC500V)
Voltage withstandatility	AC1000V 60Hz for 60 Sec
Operating temperature	-10°C～+45°C (No freezing allowed )
Ambient hunidity	35%~85%RH
Storage temperarure	-10°C～+55°C(No freezing allowed )
Storage hunidity	35%~95%RH
Material	ABS
Wiring method	φ4×2M/3-wires, φ4×2M/2-wires
Protection degree	IP64?????can do IP67
Weight	Approx.20g

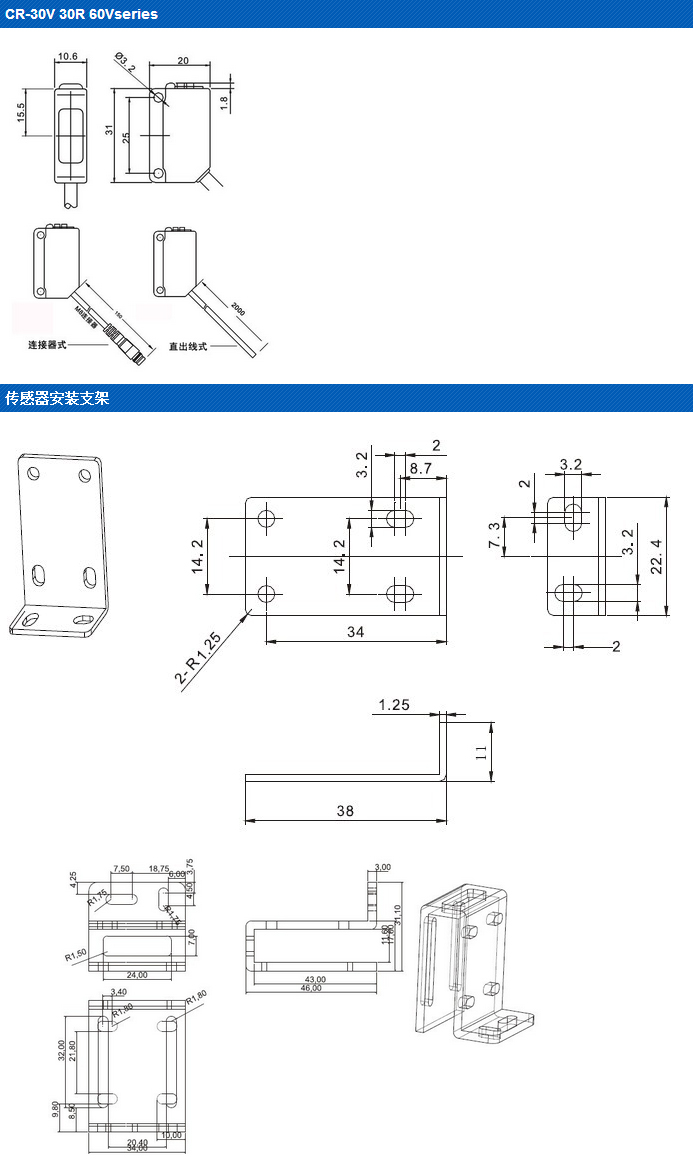

Dimension chart
