Integrated supportOptical fiber tube

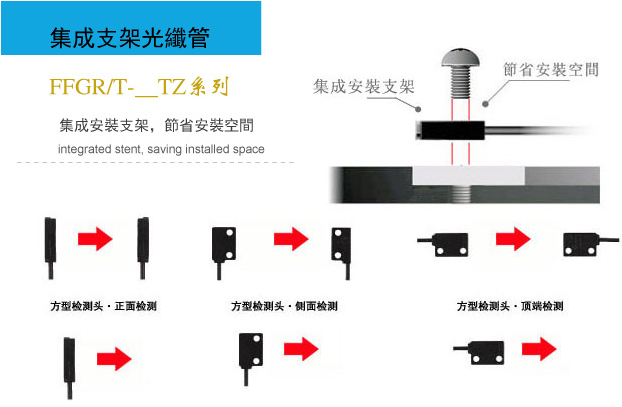

Integrated supportOptical fiber tube FFR/FFTSeries
Stent Opical Fiber

　Application / feature

Integrated support

FF-300

FF-12(FF-301 or FF-12 fiber amplifier detection distance) can be customized fiber line for 1 M , 2 M, 3 M to 50 M and various special optical fiber.

Reflective type
Shape(mm)*2 （Click for big picture）	Detection distance (mm)	Standard detected object	Fiber Materials	Bending radius	Appearance size	3Dfile	ProductModel (Click for dimension Dimension chart)
	90 120	Φ0.1	Φ1.0×2		17×8×13		FFR-L20
	70 80	Φ1	Φ2.2×2	R2	20×7×4		FFRW-42TZ
	35 45	Φ0.05	Φ1.0×0.5		10.5×7.5×2.5		FFRS-47TZ
	35 45	Φ0.1	Φ1.0×0.5		8×6.5×2		FFRS-44TZ
	25 35	Φ0.05	Φ1.0×0.5		13×7×2		FFRW-41TZ
	80 100	Φ0.1	Φ2.2*1.0		15×10×2		FFR-D15X
	35 45	Φ0.05	Φ1.0*0.5		12×8×2		FFRS-D25X
	80 100	Φ0.1	Φ2.2*1.0		15×10×2		FFR-D15Z
	30 35	Φ0.05	Φ1.0*0.5		12×8×2		FFRS-D25Z
	18 25	Φ0.5	Φ1.0*0.5		19×12×4		FFR-38
	35 45	Φ0.2	Φ0.5×2		Length：65 15×10×2		FFR-63T
To shoot
Shape(mm)*2 （Click for big picture）	Detection distance (mm)	Standard detected object	Fiber Materials	Bending radius	Appearance size	3Dfile	ProductModel (Click for dimension Dimension chart)
	120 150	Φ0.1	Φ2.2*1.0		11×8×3		FFT-Z8E
	120 150	Φ0.1	Φ0.25×7		11×8×3		FFT-Z8H
	120 150	Φ0.1	Φ0.25×7		11×8.5×3		FFT-Z8
