富达科技-Optical fiber tube Integrated tail insert protection sleeveOptical fiber tube

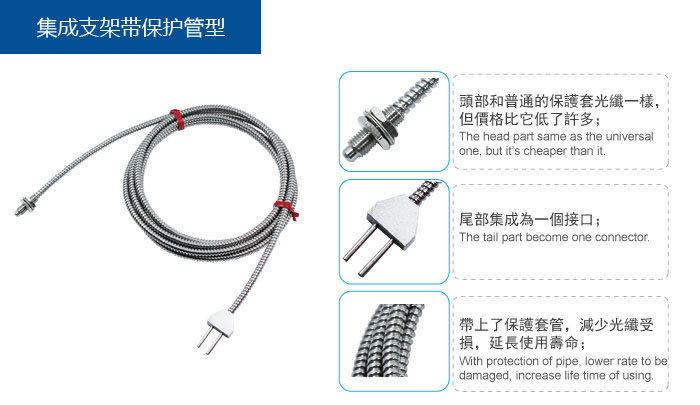

Integration Optical Fiber,with protected pipe.

Product application / feature：
FF-300FF-12(FF-301 or FF-12 fiber amplifier detection distance) can be customized fiber line for 1 M , 2 M, 3 M to 50 M and various special optical fiber.

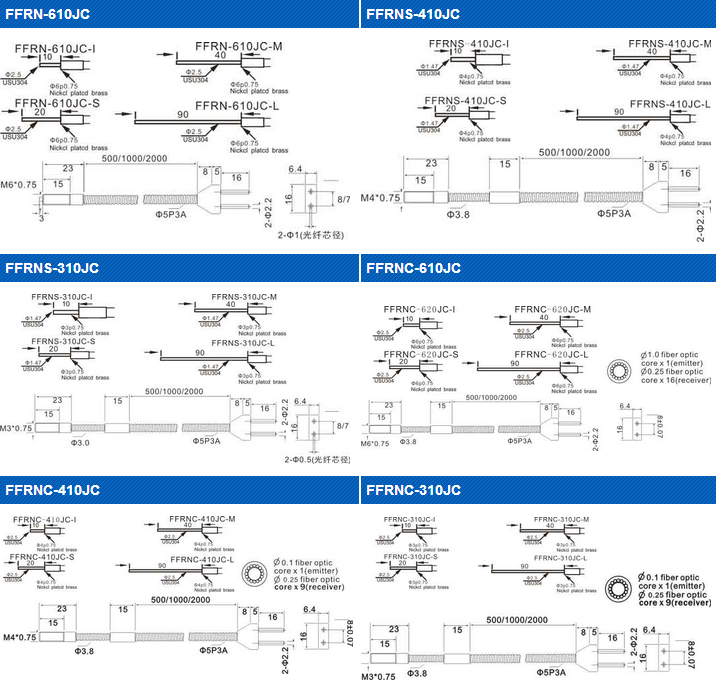

Category Shape(mm)*2 Detection distance
(mm)		 Standard detection object size Optical fiber materials Bending radius Connector Model

Reflective
Type

 Integration Optical Fiber FFRN-610JC 100
80		 Φ0.1 ? R25 M6 Screw FFRN-610JC?
Integration Optical Fiber FFRNS-410JC 45
35		 Φ0.2 ? R25 M4 Screw

FFRNS-410JC
Integration Optical Fiber FFRNS-310JC 45
35		 Φ0.05 ? R25 M3 Screw FFRNS-310JC
Integration Optical Fiber FFRNC-610JC 160
90		 Φ0.05 ? R25 M6 Screw FFRNC-610JC
Integration Optical Fiber FFRNC-410JC 45
35		 Φ0.03 ? R25 M4 Screw FFRNC-410JC
Integration Optical Fiber FFRNC-310JC 45
35		 Φ0.03 ? R25 M3 Screw FFRNC-310JC
