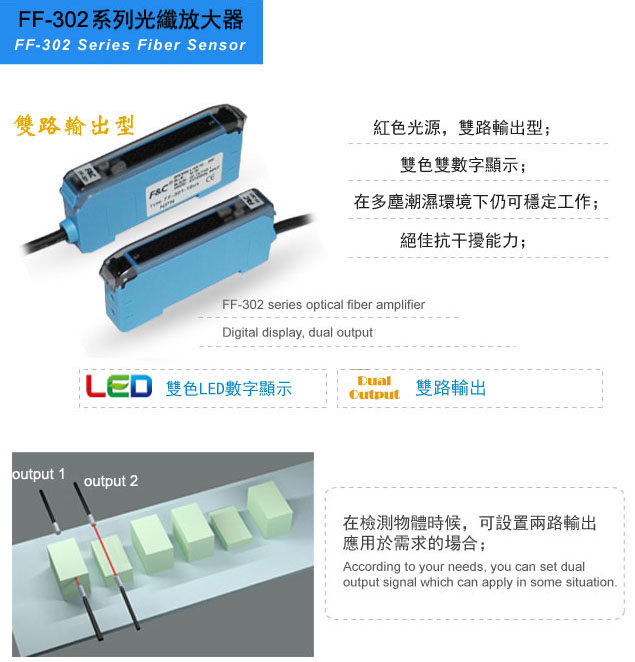

| Type |
FF-302 |
| Power supply voltage |
12 ~ 24VDC ± 10% Ripple P-P10% below |
| Power consumption |
Usually when: 720mW or less (when the supply voltage 24V, current consumption 30mA or less)
ECO mode: 600mW or less (when the supply voltage 24V, current consumption 25mA or less) |
| Output |
NPN output type
NPN open-collector transistor
Maximum sink current: 100mA
Applied voltage: 30VDC or less (between output and OV)
Residual voltage of 1.5 or less (when the input current is 100mA) |
PNP output type
PNP open-collector transistor
Maximum sink current: 100mA
Applied voltage: 30VDC or less (between output and + V)
Residual voltage of 1.5 or less (when the input current is 100mA) |
| Output work |
Light-ON or Light-ON SET mode conversion by |
| Short-circuit protection |
Equipment |
| External input |
NPN output type
NPN non-contact input
Signal conditions:
High: +8 v ~ + VDC or open circuit
Low: 0 ~ +24 V DC (outflow current 0.5mA or less)
Input impedance: approximately 10KΩ |
PNP output type
PNP-free contact input
Signal conditions:
High: +4 v ~ + VDC (out of the current 0.5 ~ 3mA)
Low: 0 ~ +24 V DC or open
Input impedance: approximately 10KΩ |
| Reaction time |
Spot frequency 0:60 us the following (factory state)
The following vote light frequency 1:250 us
The following vote light frequency 2:2 ms |
Spot frequency 1:2.5 ms or less (factory state)
The following vote light frequency 2:2.8 ms
The following vote light frequency 3:3.2 ms |
| Detection distance |
0 ~ 480mm diffuse reflection on the radio 0 ~ 4000mm |
| Working indicator |
Orange LED (lights up when output ON) |
| Digital Display |
4 (green) + 4 bits (red) LCD |
| Set the sensitivity of fine-tuning |
Equipment |
| Timer function |
Timer ON delay / OFF delay timer can be adjusted effective or ineffective [regular time: 1MS, 5MS, 10MS, 20MS, 40MS, 100MS, 500MS, 1000MS] |
| The amount of light cast selection function |
Equipped with a regulation valid or invalid |
| Anti-interference function |
Optical frequency-conversion equipment investment
(Cast in the function of optical frequency 1,2,3) |
Optical frequency-conversion equipment investment
(Cast in the function of optical frequency 1,2,3) |
| Environmental resistance |
Ambient temperature |
-25 ~ +55 ° C (4 ~ 7 units close to the installation: -25 ~ +55 ° C8 ~ 16 units close to the installation: -25 ~ +45 ° C) (No dew condensation or icing) Storage: - 40 ~ +70 ° C |
| Ambient humidity |
35 ~ 85% RH Storage: 35 ~ 85% RH |
| Ambient illumination |
Incandescent: 3,000 ex illumination by the following smooth |
| Withstanding Voltage |
AC1, 000V-minute all the power connections between terminals and enclosure |
| Insulation resistance |
DC250V trillion when all of the above 20mΩ power connections between terminals and enclosure |
| Vibration Resistance |
Frequency 10 ~ 150Hz double amplitude of 0.75mm XYZ 2 hours each direction |
| Impact resistance |
Frequency 98m/s2 (about 10G) XYZ 5 times each direction |
| Cast light emitting diode (modulated) |
Red LED (peak wavelength of light cast: 650nm) |
| Material |
ABS PC |

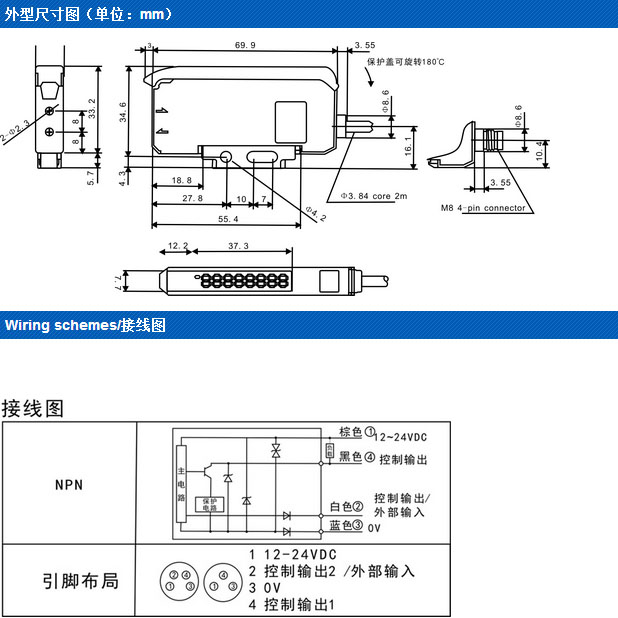

| Connection |
M8 ,3-pin socket 2m power cable, PVC M8, 4pin socket |
| Wire length |
0.3mm2 cable can be used more than the maximum extended to 100m |
| Weight |
Body weight: 20g Packing Weight: about 25g |
