Fiber amplifier-High speed dual digital display Fiber amplifierFF-301-16us
Fastest response time , Dual digital display. |
| |
| Feature |

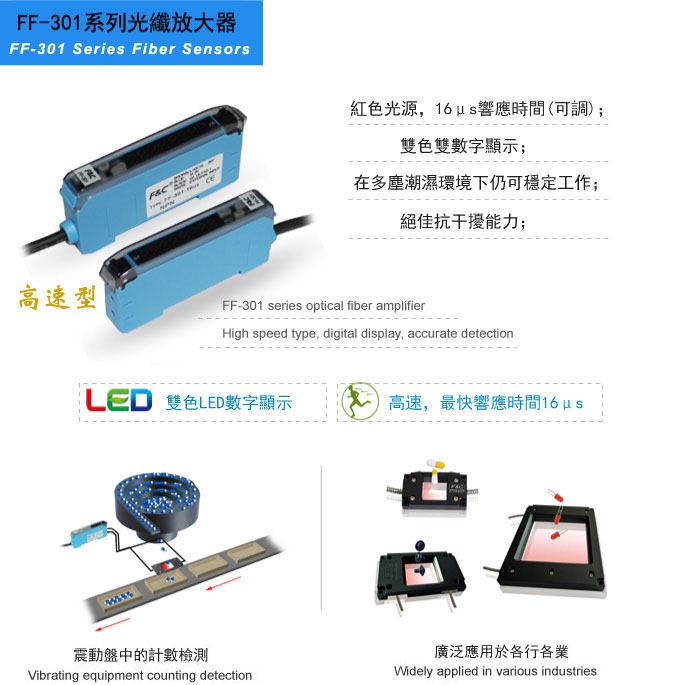

Optical Fiber Sensor FF-301-16us, fastest response time Dual digital display：
The fastest response time：16us；
Longest detection range of up to 20m；
Adjustable trigger delay time；
Excellent anti-jamming capability；
Built-in adjustable timer；
Digital display on the panel, you can adjust the display direction according to the direction of installation location；
Connect up to 16 groups of FF-301-16us Sensor；
Highlight surface can be detected；
Busty and humid environment can still be stable；
Different client, different choice；
 |
Specifications
NPN OutPut |
| Models |
FF-301-16us |
FF-301D-16us |
| Power supply voltage |
12～24VDC±10% Ripple P-P10% less |
| Power consumption |
≤45mA/24V |
| OutPut |
Brightness adjustment |
| External input |
NPN output type?or PNP output type?
Maximum sink current：100mA
Applied voltage:30VDC above
max Current:≤100mA
Residual voltage:1.8V
? |
| Reaction time |
can be set 16us、70us、250us、2ms |
| Short-circuit protection |
Yes |
| Digital Display |
4 (green) + 4 bits (red) LCD |
| Sensitivity function |
auto/Manual adjustment |
| Timer function |
Timer ON delay / OFF delay timer can be adjusted effective or ineffective [regular time: 1MS, 5MS, 10MS, 20MS, 40MS, 100MS, 500MS, 1000MS] |
| Timer time |
0.1ms-9s |
| InPut Setting |
auto setting/?auto guide/testing/Synchronization setting |
| Operating Temperature |
-25～+55°C(4～7 install side by side：-25～+55°C8～16 install side by side：-25～+45°C)(No freezing allowed ) /35...85% |
| Ambient humidity |
storage:-40～+70°C35 ～ 85%RH |
| Impact resistance |
Frequency:10-150Hz Double amplitude:0.75mm XYZ?two hours in?each directions |
| Waterproof rating |
IP50 |
| Material |
ABS/PC |
| Weight |
Net ?weight：about 65g?, gross weight：about 18g |
双数显两路OutputFiber amplifier
