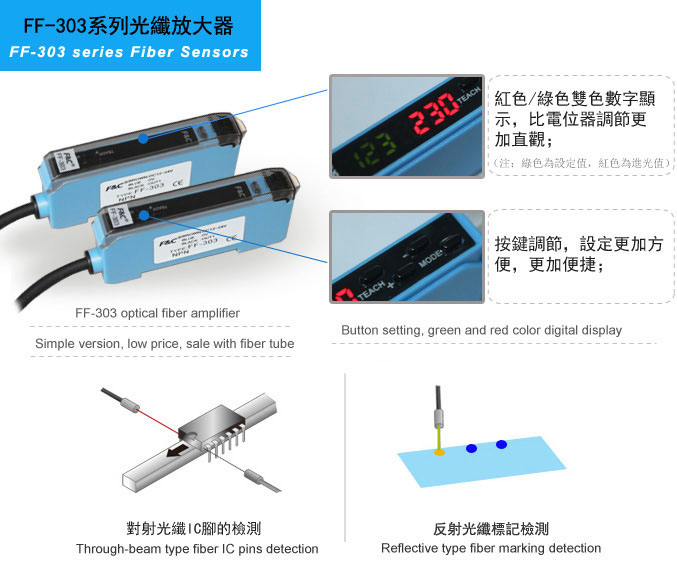

| Light source |
Red |
Green |
| Cable type |
FF-303 (npn)? ? FF-303P (pnp) |
FF-303G (npn)? ? FF-303GP (pnp) |
| M8connector |
FF-303D (npn)? ? FF-303PD (pnp) |
FF-303GD (npn)? ? FF-303GPD (pnp) |
| Working Voltage |
12～24VDC±10% P-P ≧10% |
| Current consumption |
400mA Max. |
| Loading current |
100mA Max.at DC24V |

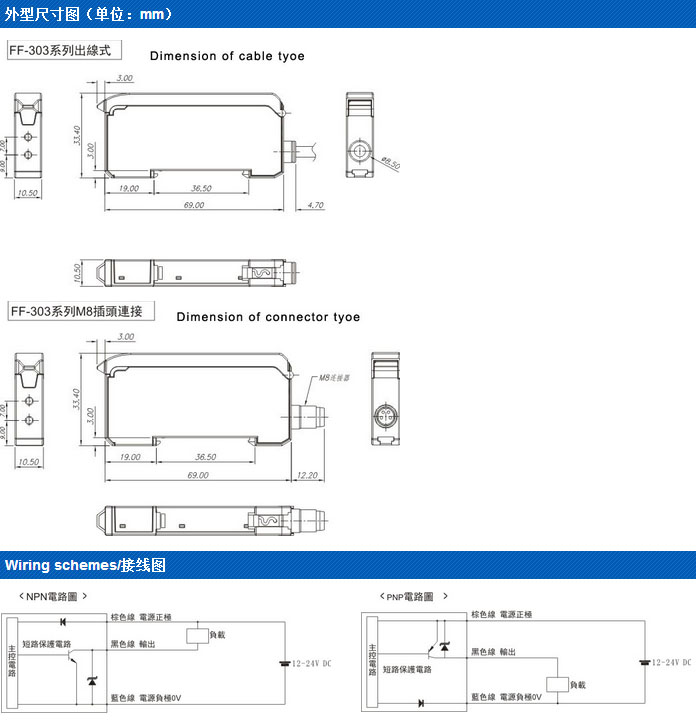

| Output mode |
NPN Open collector transistors |
PNP Open collector transistors |
| NPN Open collector transistors |
PNP Open collector transistors |
| Max input current：100mA |
Max output current：100mA |
| voltage：30VDC |
voltag：30VDC |
| Residual voltage：1.0VDC below |
Residual voltage：1.0VDC below |
| 0.4V below（current at 16mA） |
1.0V below（current at 16mA） |
| Operation output: normally open or normally close, can be set by pressed the button. |
| Short circuit protection: Yes |
| Self diagnosis |
Instability detection output when on, the signal last 40ms (cut off the output automatically when output short circuit protection signals continued to short-circuit the disarmament) |
| Response time/frequency |
Universal：switch frequency: 1KHz，response time：500μs |
| Detection distance |
red light source |
reflective：200mm（1mm diameter fiber core ） |
| through beam：1200mm（1mm diameter fiber core） |
| green light source |
reflective：700mm（1mm diameter fiber core） |
| through beam：400mm（1mm diameter fiber core） |
| Indicatior LED |
output：(red)???? stable：(green, please keep this LED non-flashing) |
| Time delay function |
5ms/50ms/500ms/5s/0s，five choice of setting by button. |
| Transmission power |
100% / 50% / 25% / 12% Transmitter power can be set in different percentage. |
| Ambient temperature |
-20 ～ +70°C |
| Environment humidity |
35 ～85%RH |
| Material |
Shell: PC+ABS;Cover: Polycarbonate |
| Annex |
(Mounting bracket): 1pc |
